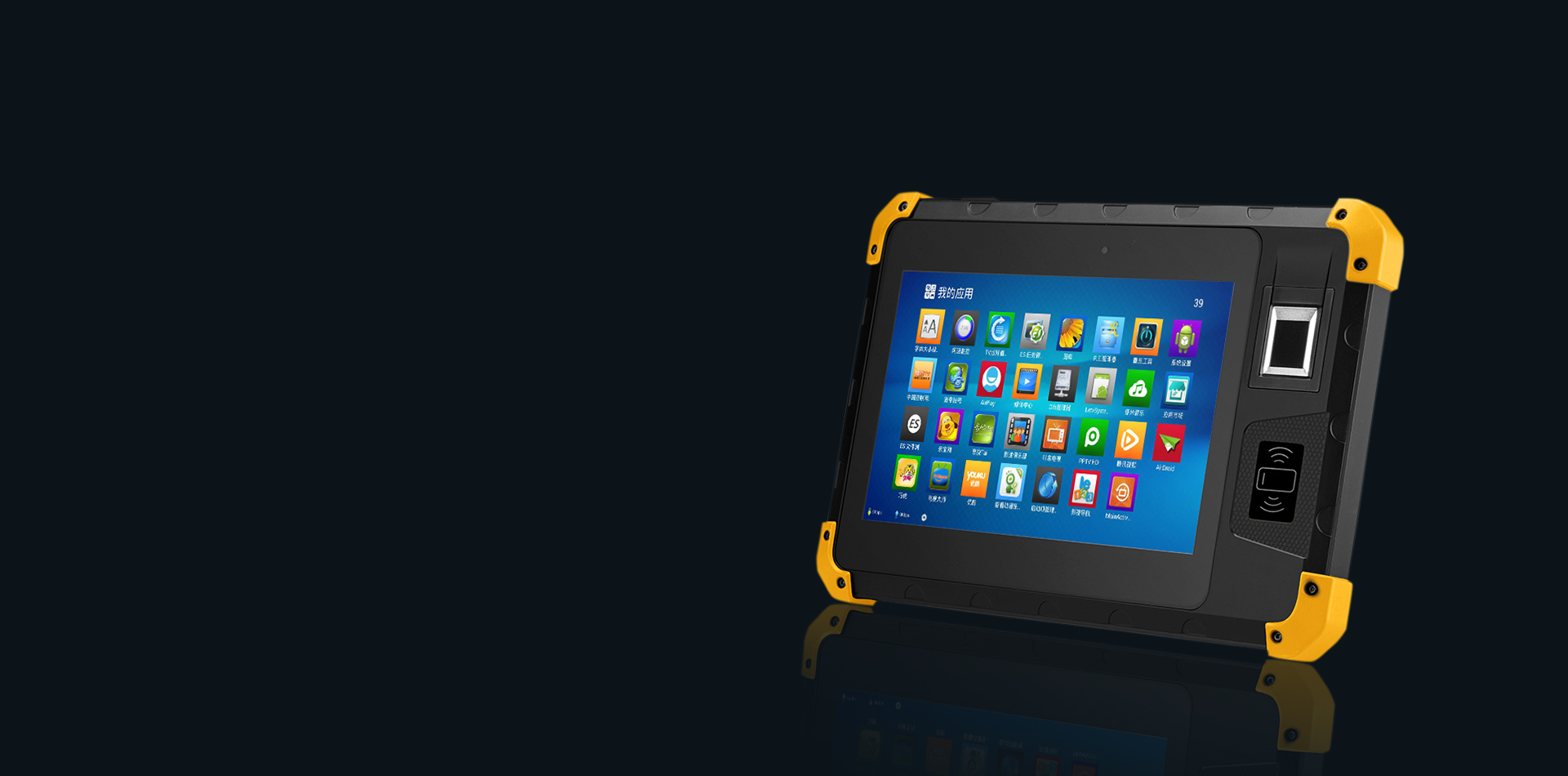

QS - 805

8 inch Rugged industrial
Android tablet

Industrial professional processors
are more powerful

Octa-core 64 bits 2.0GHz

2GB RAM + 16GB ROM (optional 64GB ROM + 4GB RAM)

Android 9.0/11.0

UHF RFID and NFC (optional)

Read multiple tags at one time, strong penetrability,
can be read and written multiple times, and large
memory capacity of data

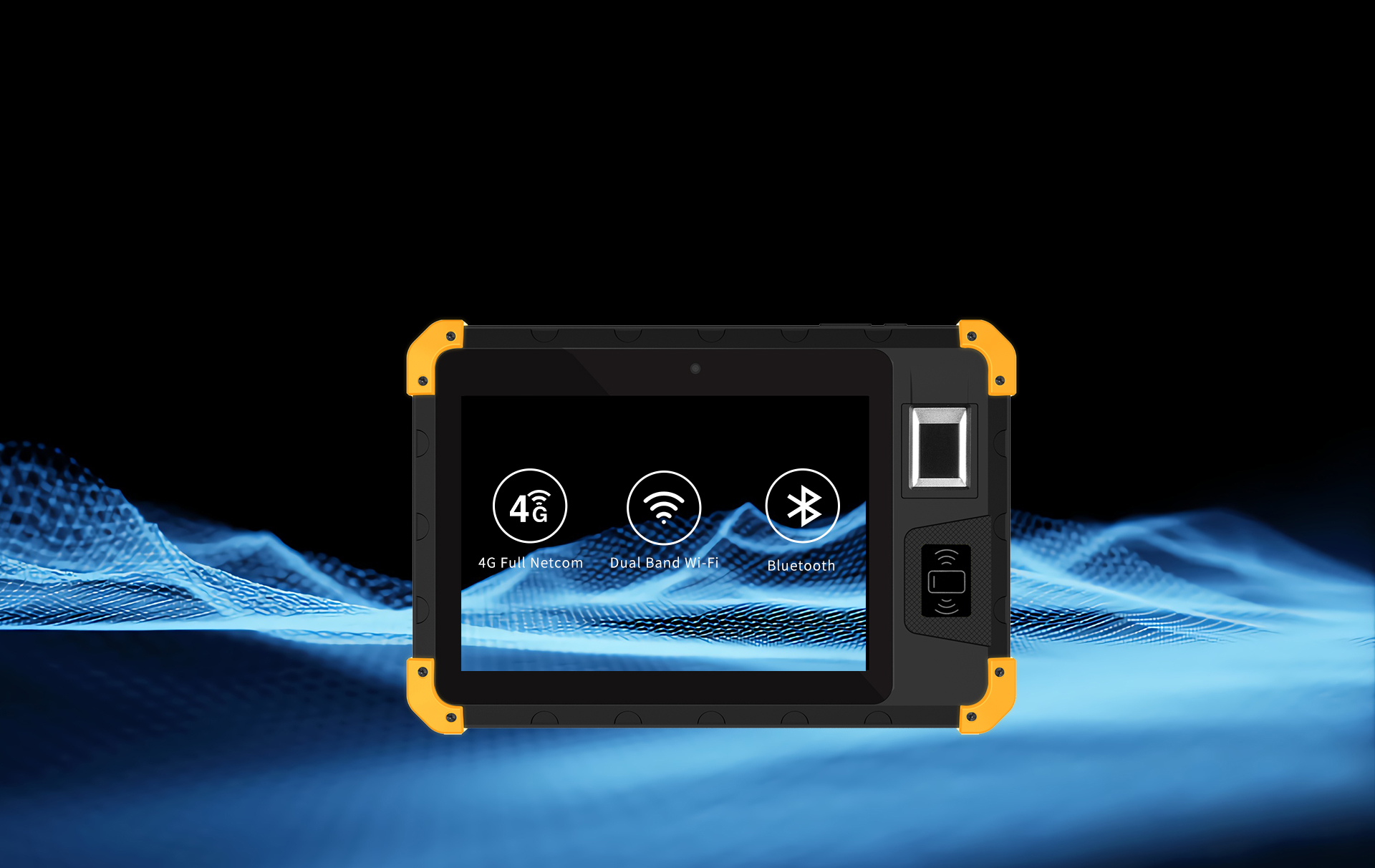

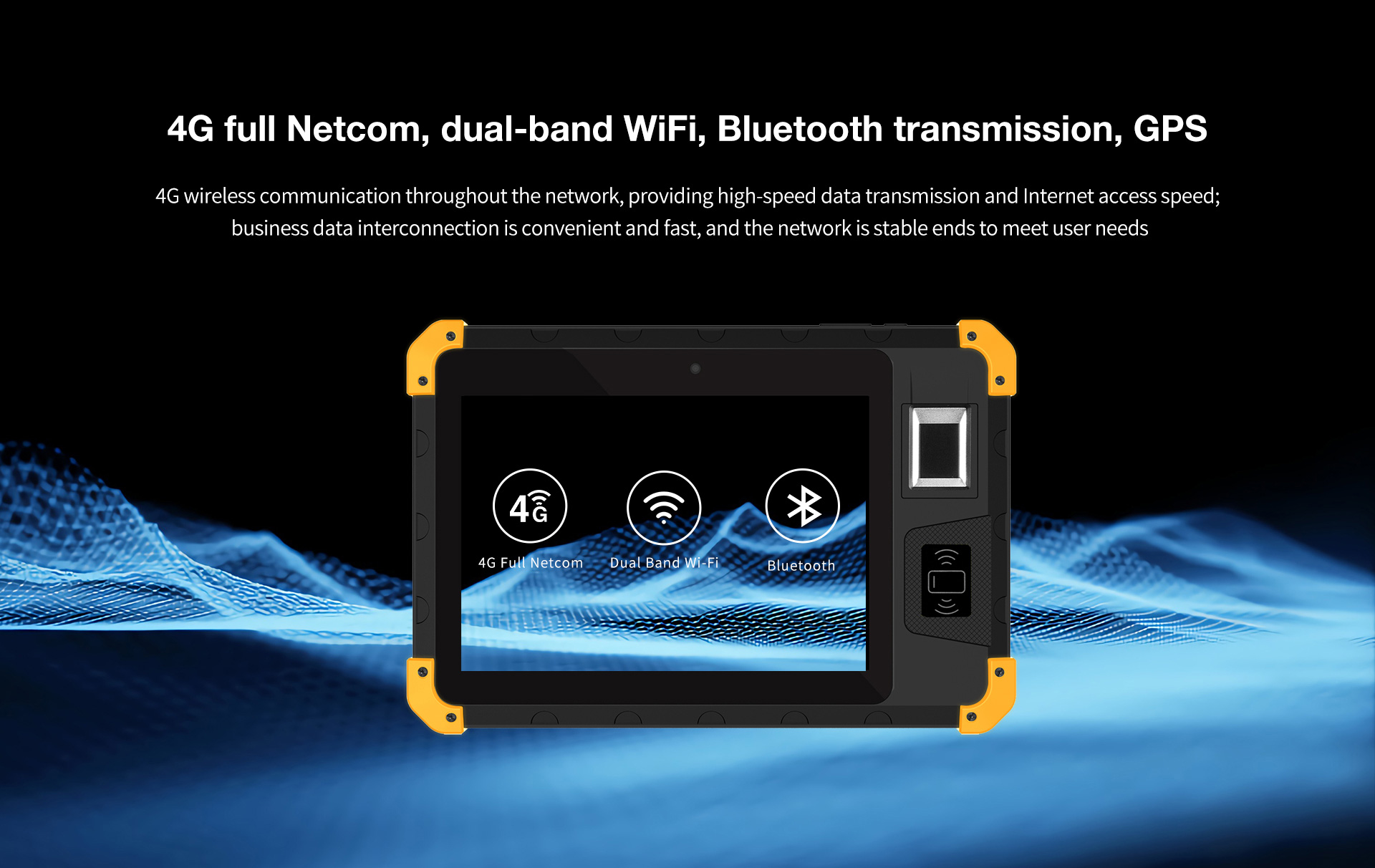

4G full Netcom, dual-band WiFi, Bluetooth transmission, GPS

4G wireless communication throughout the network, providing
high-speed data transmission and Internet access speed;
business data interconnection is convenient and fast, and
the network is stable ends to meet user needs

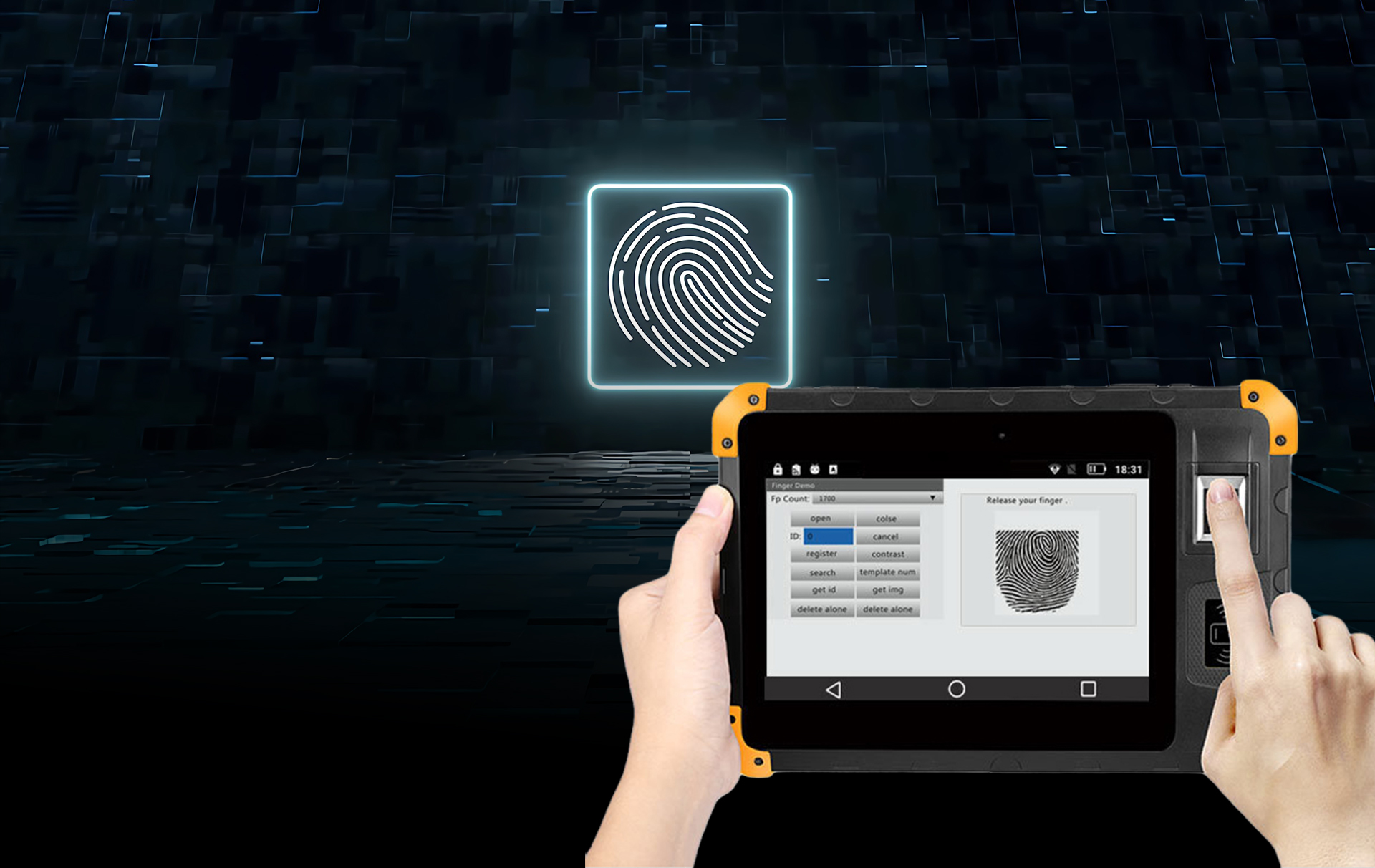

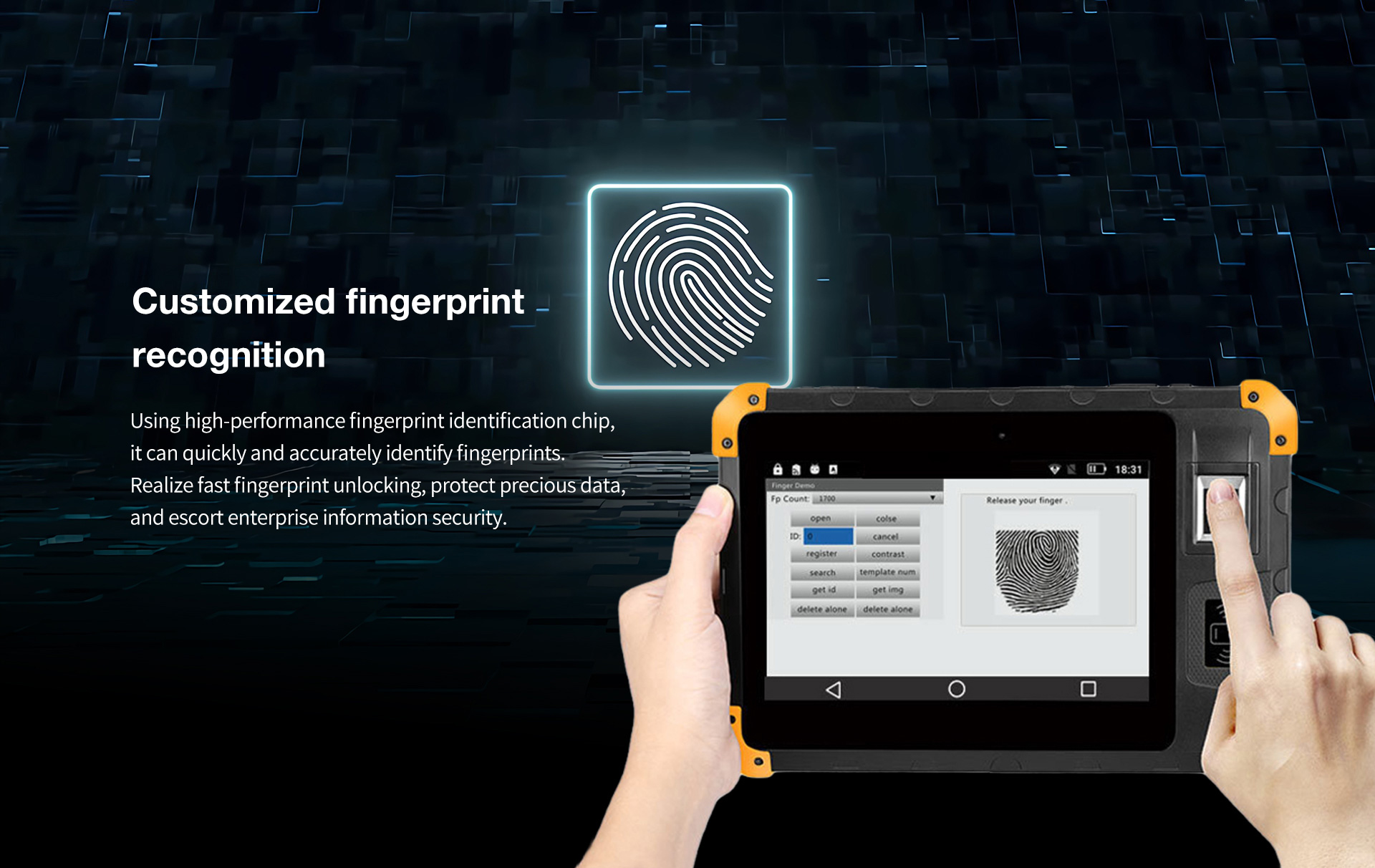

Customized fingerprint recognition

Using high-performance fingerprint identification chip,
it can quickly and accurately identify fingerprints.
Realize fast fingerprint unlocking, protect precious
data, and escort enterprise information security.

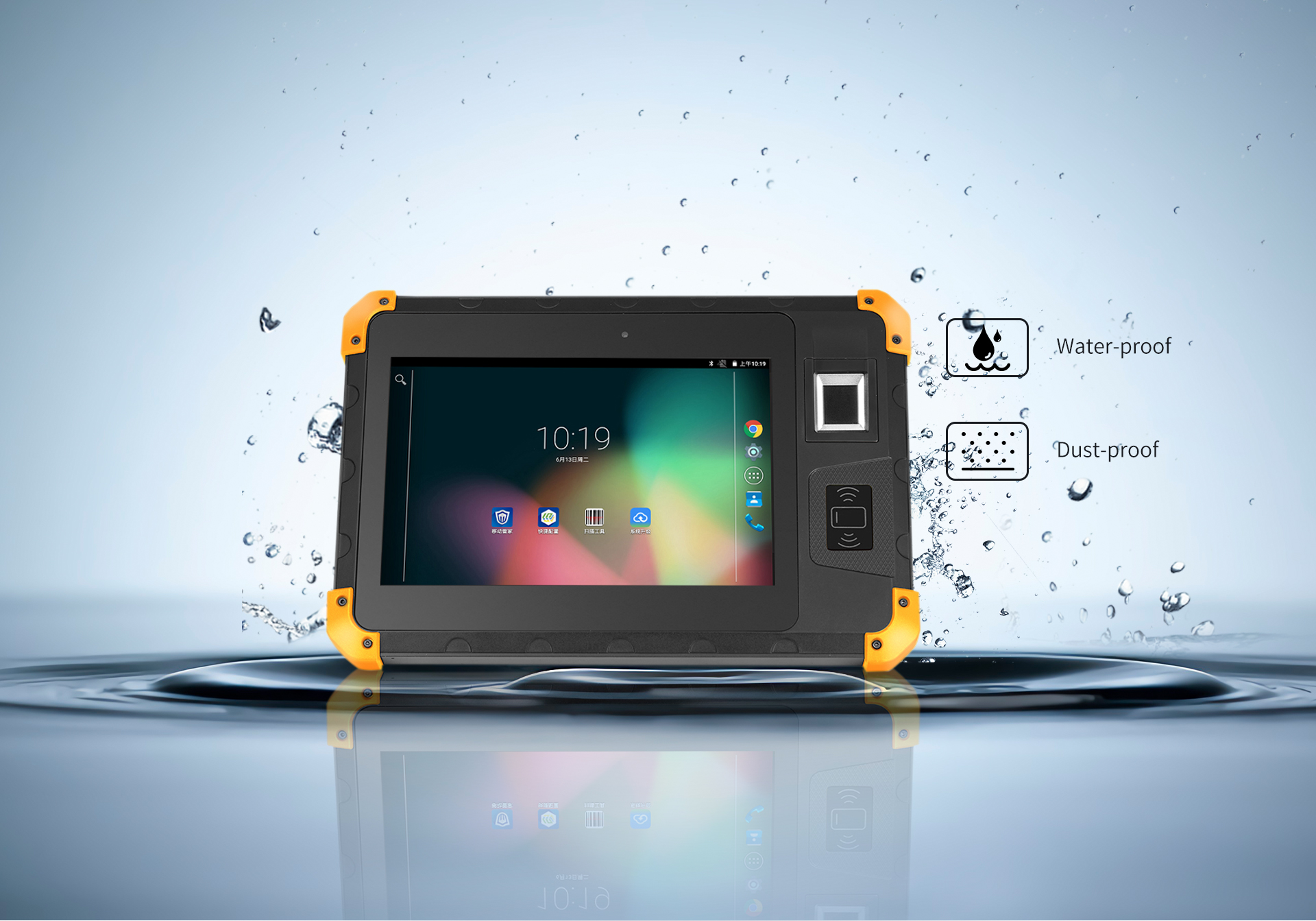

IP65 HIGH LEVEL OF PROTECTION

Water-proof、Drop-proof、 Dust-proof”Withstand
Impact from High and Low Temperature (-20°C - 55°C )

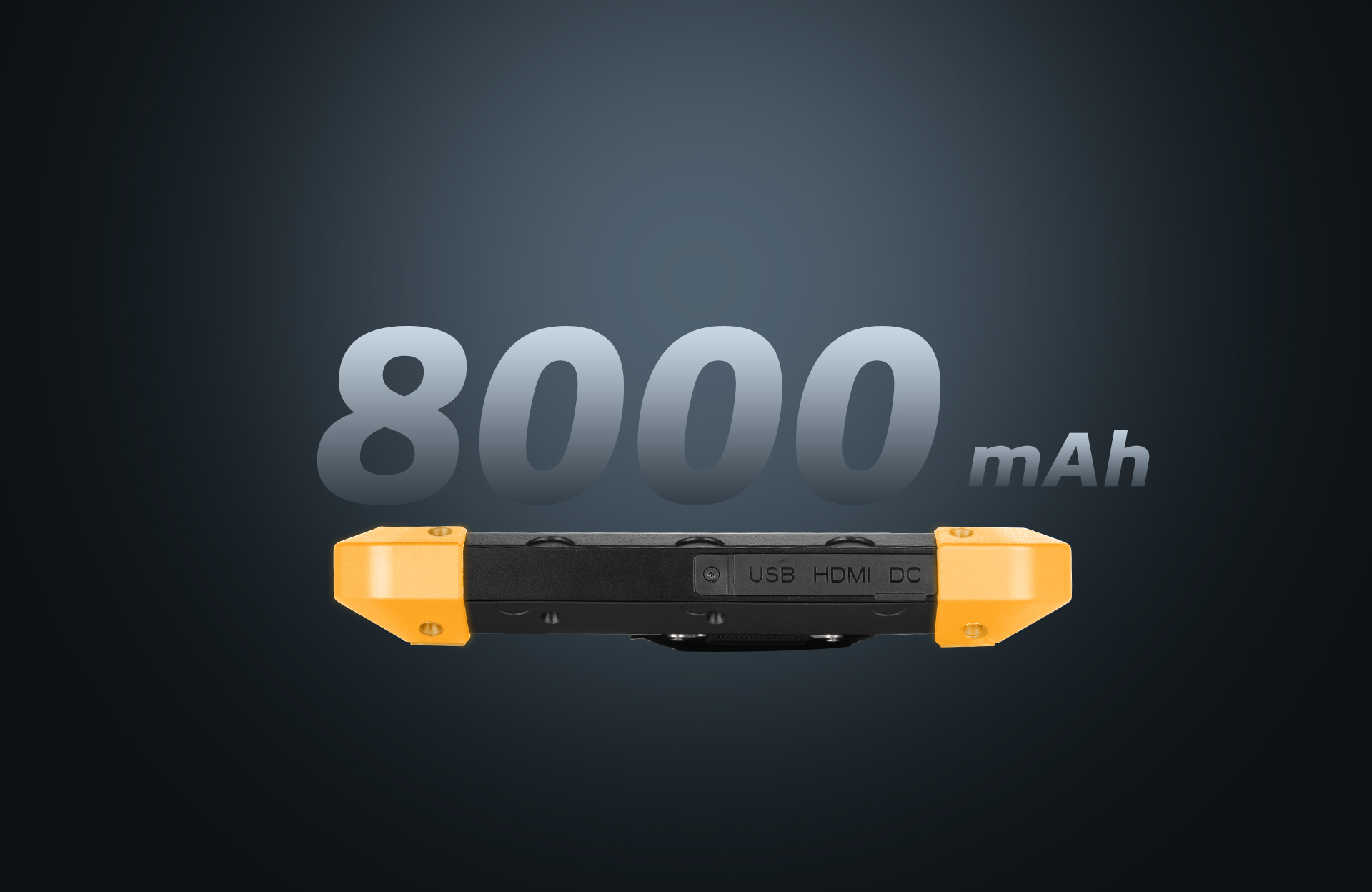

8000mAh large capacity battery

Built-in large-capacity battery, long-lasting power and long
battery life, can meet the needs of long-term outdoor use

QS-805 Product Parameters

System Configuration

Processor

ARM Cortex A53 Octa-core 2.0GHz

O.S

Android 9.0/11.0

Memory

16G ROM+2G RAM
64G ROM+4G RAM(Optional)

Ex-Storage

Micro SD (Up to 64GB)

Display

8.0 inch IPS 1280x800 pixs

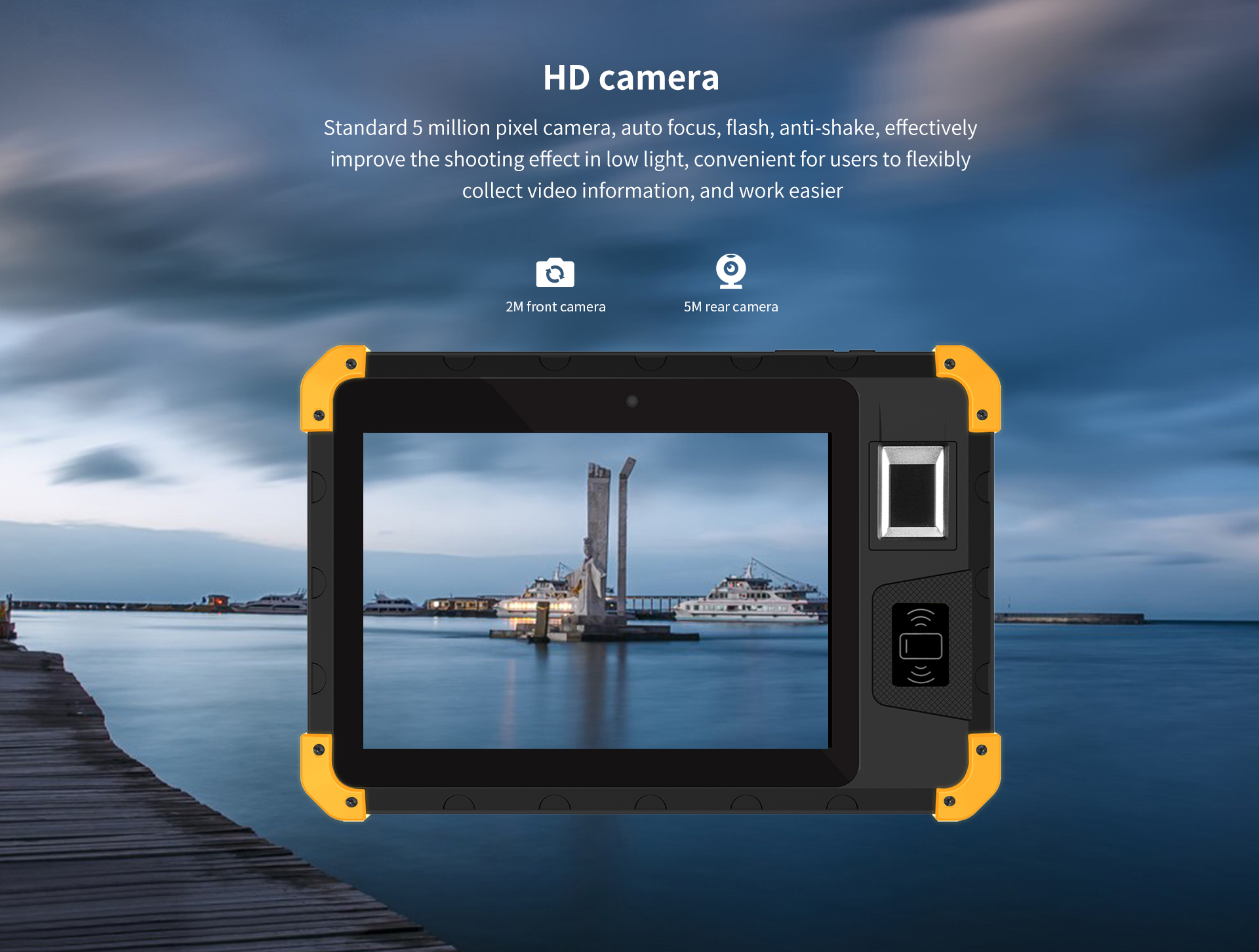

Camera

Front:AF 2.0M Pixels autofocus with LED flash light
Back::AF 5.0M Pixels autofocus with LED flash light

Touch Panel

Industrial-grade capacitive touch panel

Keypad

Power button, volume button

Notification

Vibrator/LED/Speaker

Battery

3.7v 8000mAh rechargeable lithium polymer battery(removable)

Audio

Built-in microphone

Sensor

G-sensor

Interface

Micro USB/Extend Serial Port/Audio port

Structural Parameters

Dimensions(LxWxD)

260*171*32mm

Weight

1.05kg(battery included)

Communication Transmission

Mobile Network

3G： WCDMA:850/900/1900/2100MHz CDMA/EVDO 800MHz
GSM: 850/900/1800/1900MHz
4G：LTE-FDD:B1/B3/B7/B8/B28 LTE-TDD:B38/B39/B40/B41

Wi-Fi

IEEE 802.11 b/g/n

Bluetooth

Bluetooth 4.0

GPS

Support GPS/AGPS

Operating Environment

Develop Tools

Android SDK + JDK + Eclipse

P-Language

Java

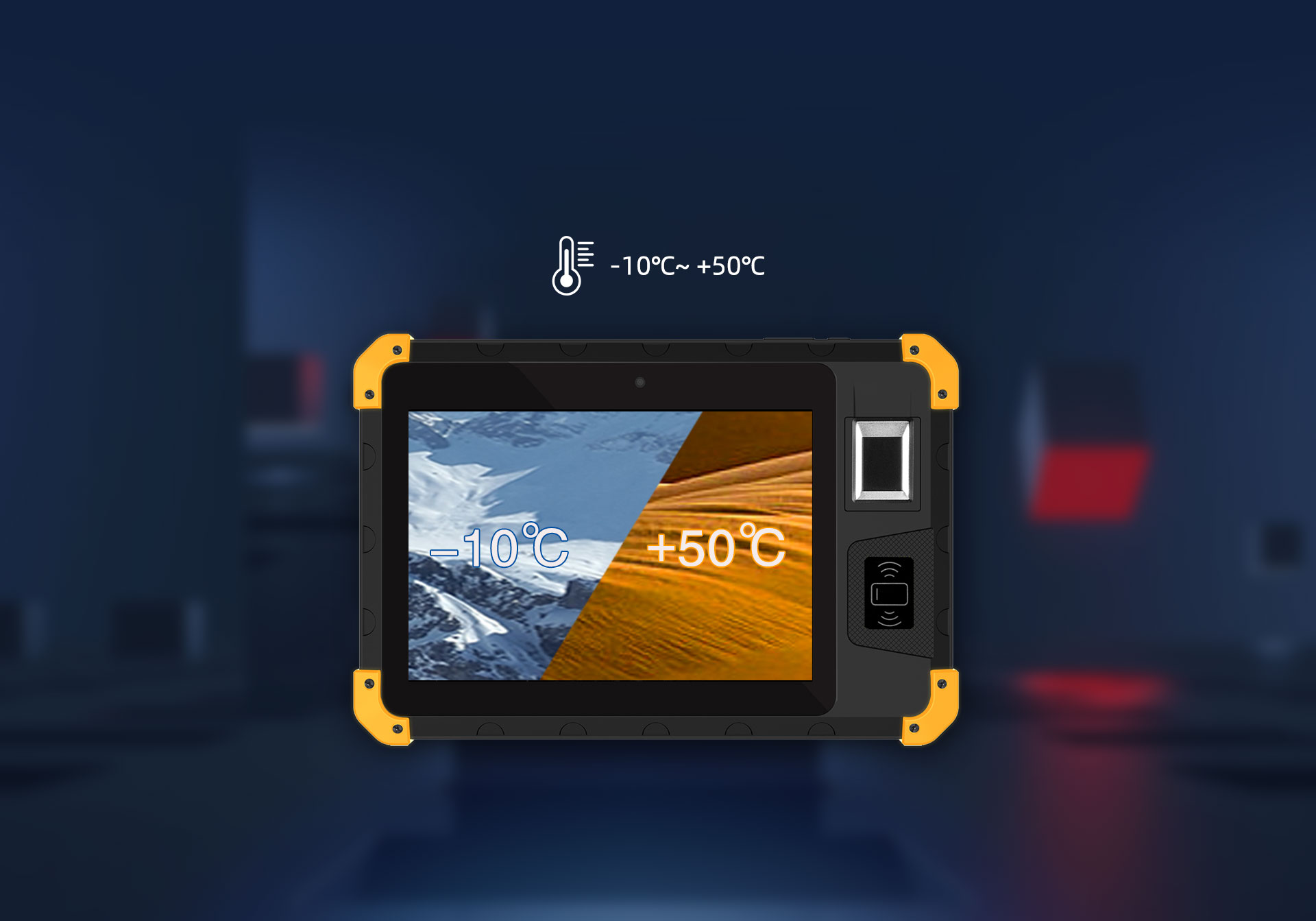

Operating Temp.

-10°~ 50°C

Storage Temp.

-20°~ 70°C

Humidity

0 ~ 95% (non-condensing)

Sealing

IP67

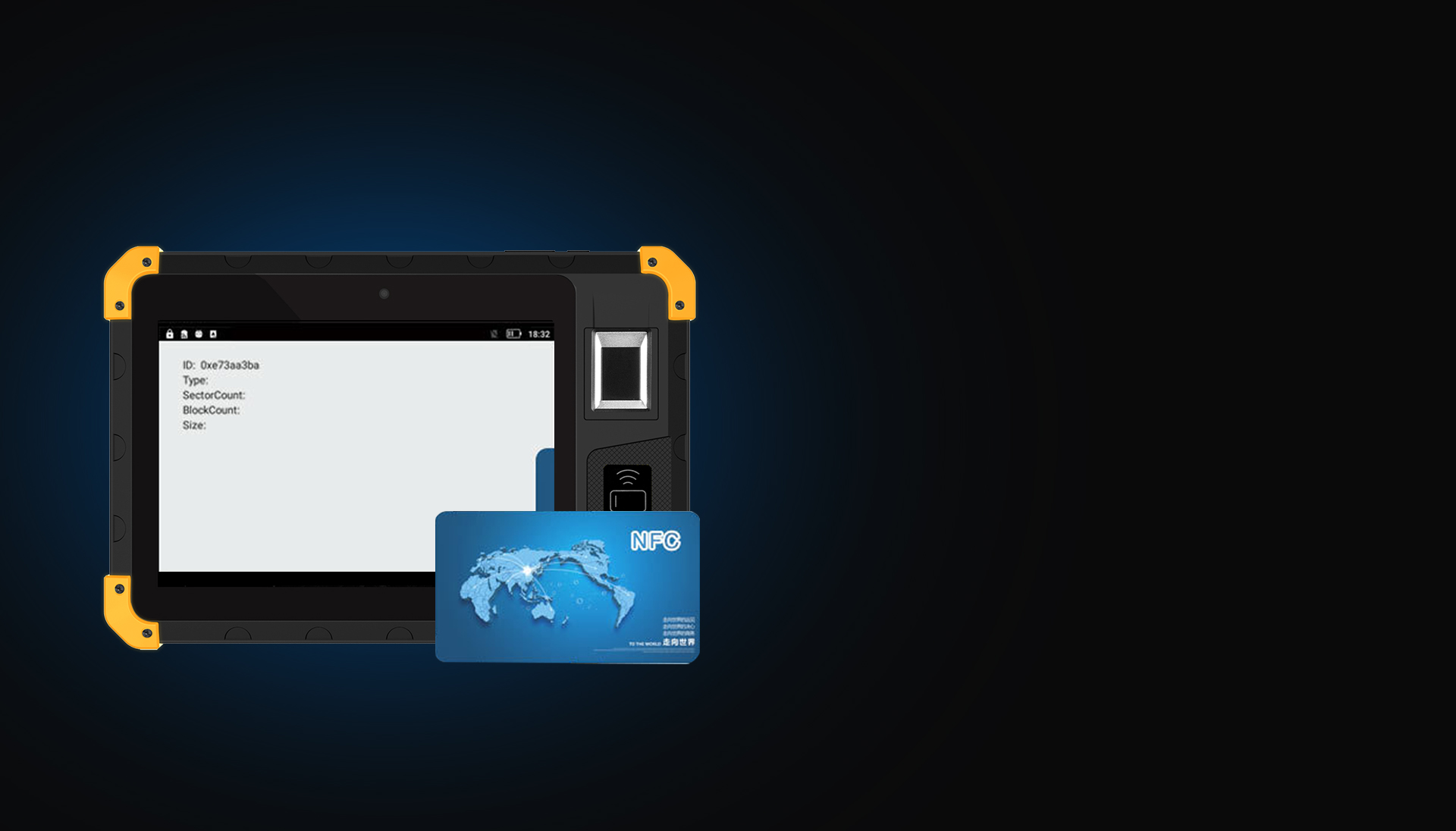

NFC RFID

Protocol

ISO/IEC 14443A/B,ISO15693

Frequency

13.56MHz

Card type

Type1-4Tag/Mifare/Felica

Fingerprint(Optional)

Sensor

Optical Biometric

Certified

FBI

Resolution

500 dpi

CaptureArea

0.8”(H) x 1”(W)

UHF RFID(Optional)

Frequency

902Mhz-928Mhz、865MHz-868MHz(optional)

Protocol

EPC global UHF Class 1 Gen 2/ISO 18000-6C

Capture Range

1-2m

Output Power

18-26dBm
