Suitable For A Variety Of Environments

Widely Used In Express Logistics, Financial Insurance, Warehouses, Retail Stores, Supermarkets And Other Industries

Handy Business With Multiple Accessories

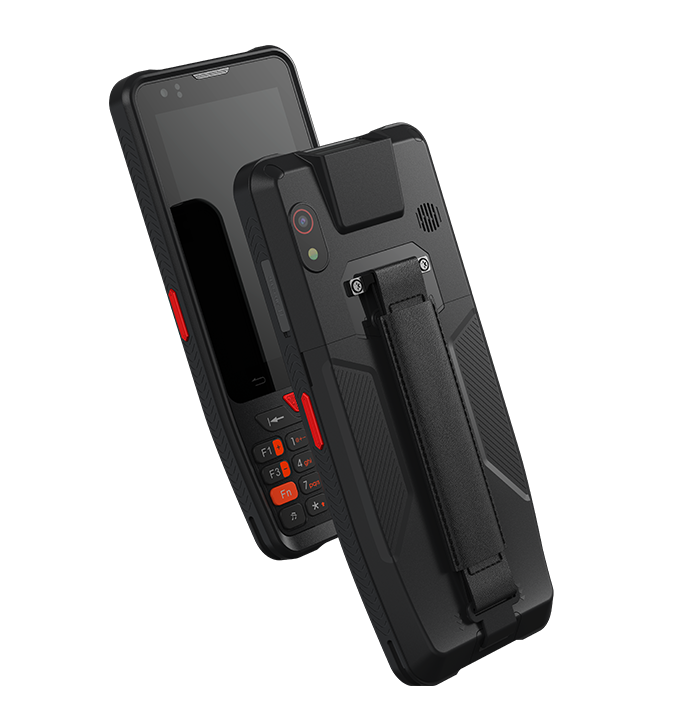

Wrist Band
Independent seat charging

Wrist Band

With An Extension Strap, It Is Convenient ForDaily Mobile Use. The Wearable Can Be Hung In The Hand To Complete Other Tasks

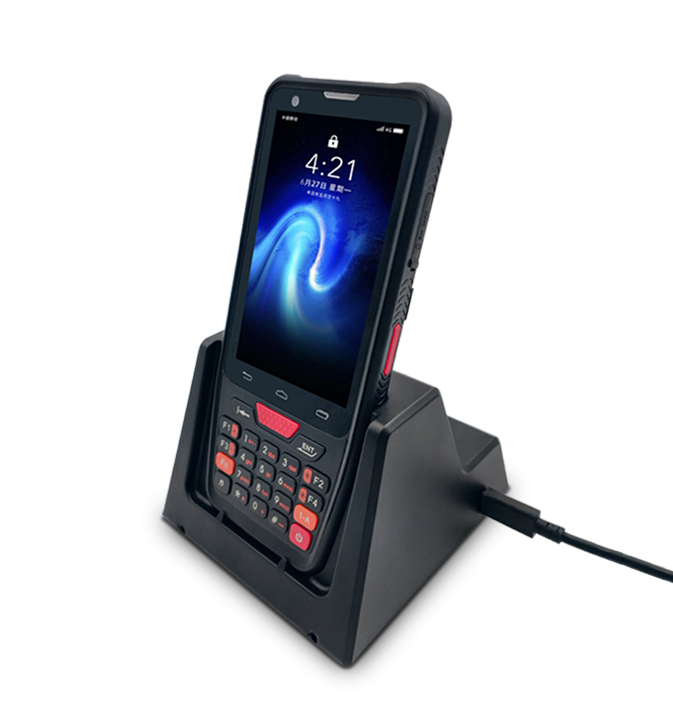

Independent seat charging

The seat charger can charge the battery separately, or it can be directly charged by placing it on the machine, and can be fully charged when working outside

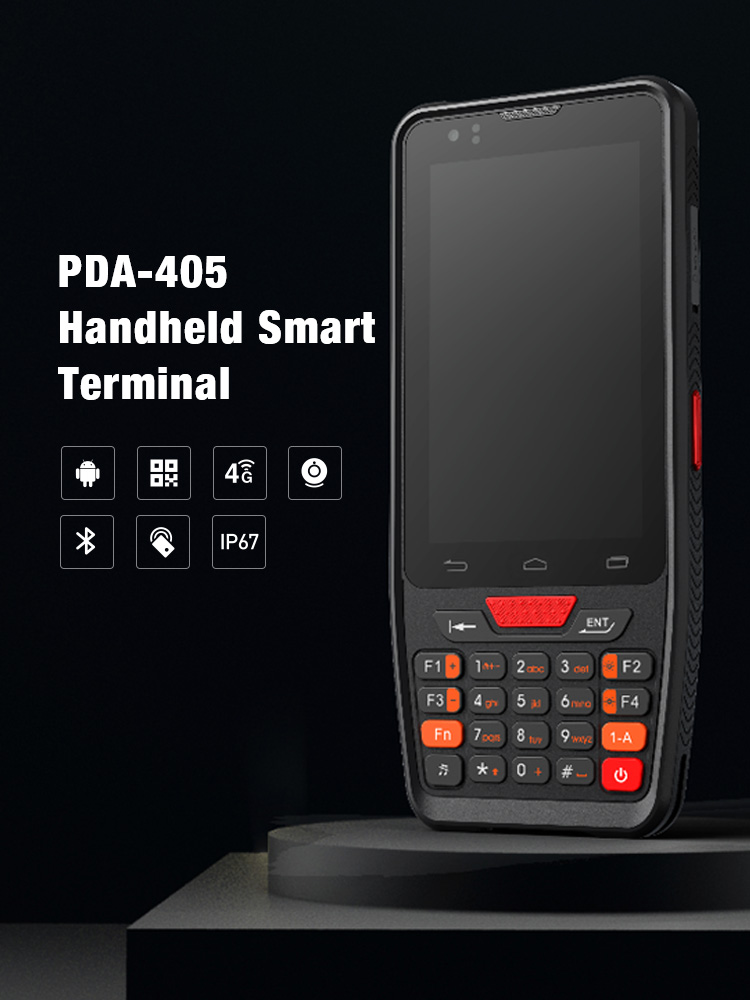

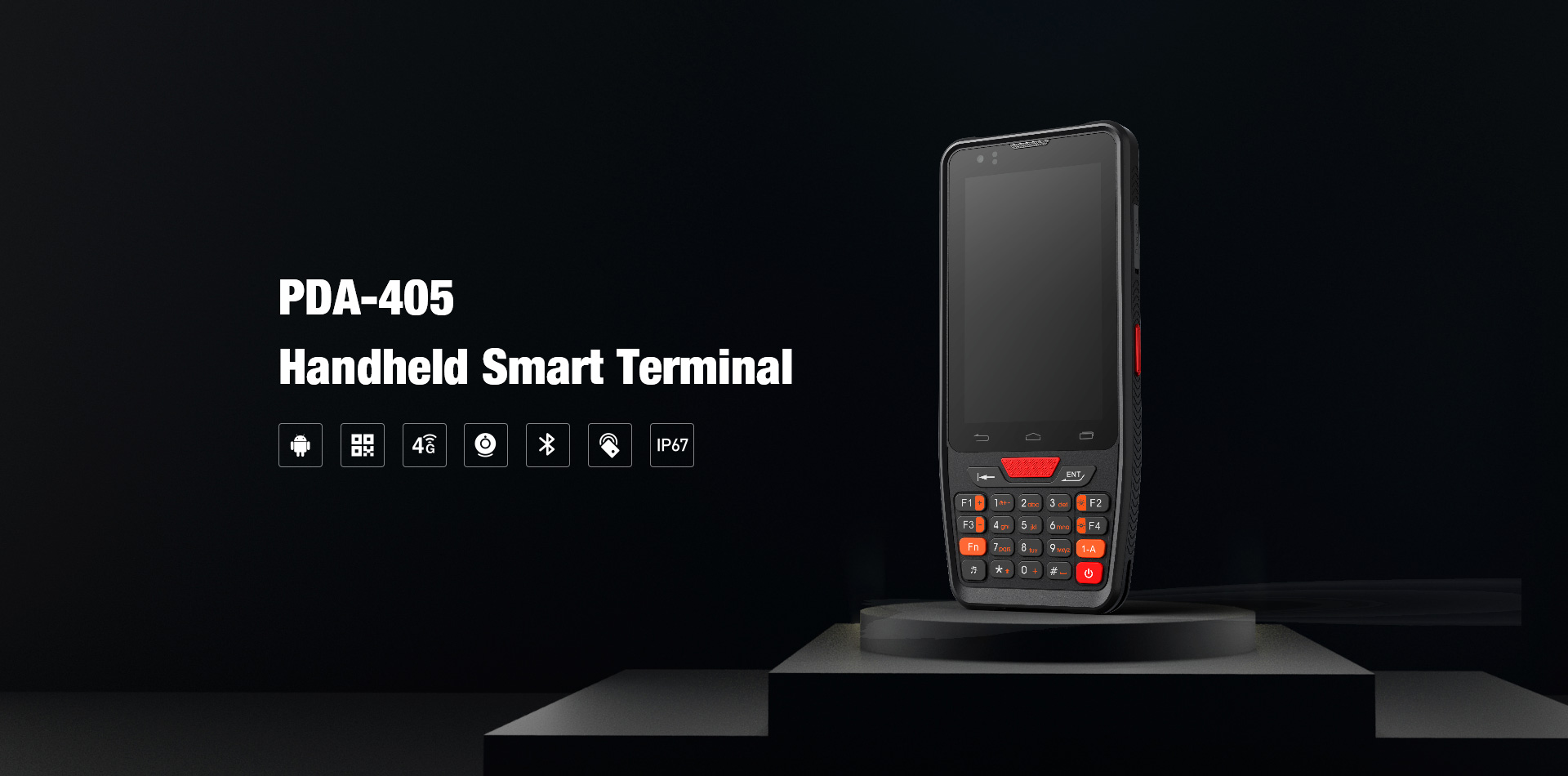

PDA-405 Product Parameters

System Configuration

Processor

Octa-core 2.0GHz high-performance processor

Operating System

Android 12.0

Memory

3GB RAM+32GB ROM or 4GB+64GB

Ex-Storage

Micro SD (Up to 128GB)

Display

4.0inch IPS 480x800 High Resolution

Camera

Front:5MP Camera
Back:AF 13.0M Pixels autofocus with LED

Touch Panel

Industrial-grade capacitive touch panel

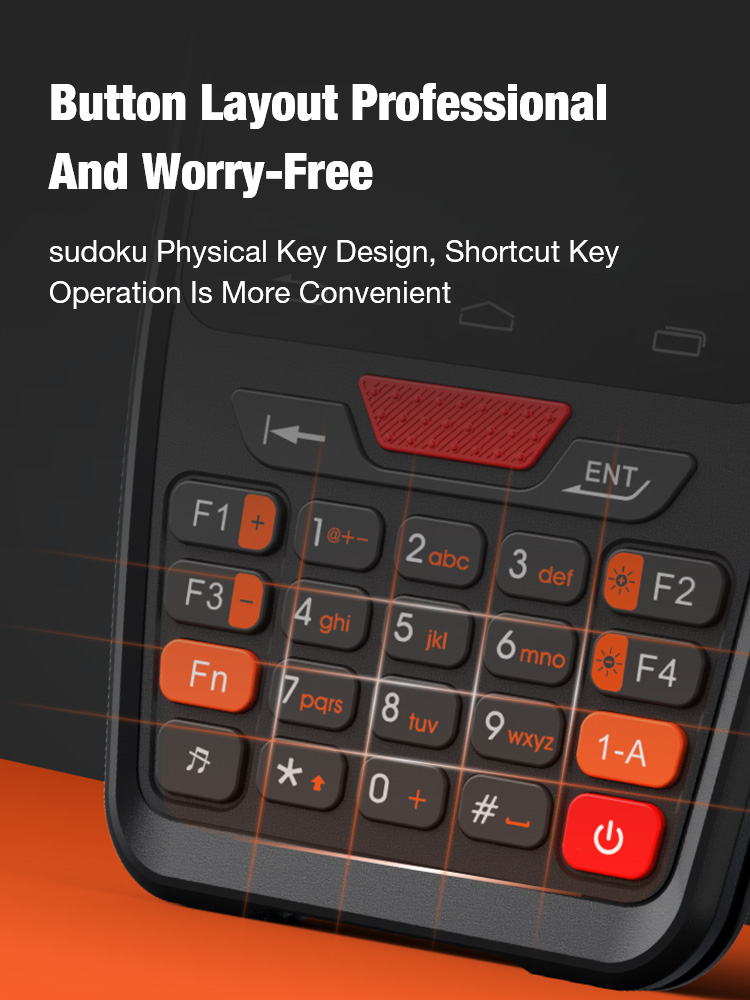

Keypad

Front keys*19, left and right scan keys*2

Notification

Vibrator/LED/Speaker

Battery

5v 3500mAh rechargeable lithium polymer battery

Audio

Built-in microphone/Speaker

Sensor

Ambient Light sensor, Proximity sensor

Interface

Type-C interface, support PE 5.0V and 9.0V fast charging

Structural Parameters

Dimensions (LxWxD)

Approx. 166mm×75mm×20mm

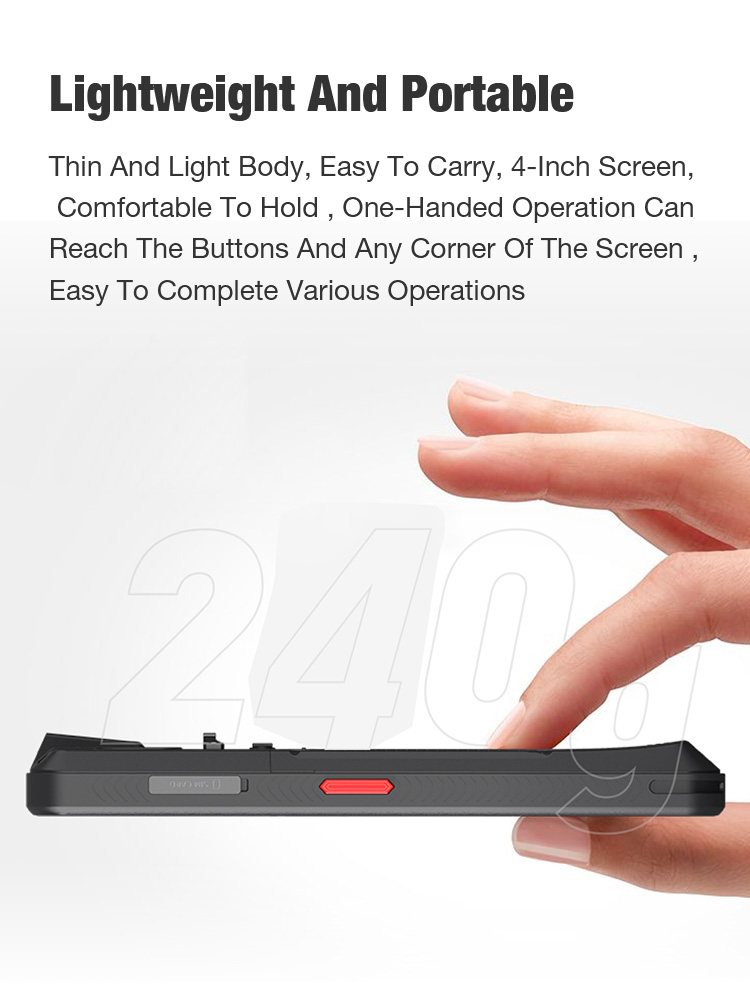

Weight

240g(battery included)

Communication Transmission

Mobile Network

2G(GSM): B2/B3/B5/B8 3G: WCDMA:850/900/1900/2100MHz
CDMA/EVDO 800MHz GSM: 850/900/1800/1900MHz
4G: LTE-FDD:B1/B3/B7/B8/B28 LTE-TDD:B38/B39/B40/B41

Wi-Fi

Wi-Fi 802.11a/b/g/n/r/ac (2.4G+5G dual-
band Wi-Fi)

Bluetooth

Bluetooth 5.0, supports BLE

GPS

GPS/AGPS/Beidou/Galileo/GLONASS/QZSS

Operating Environment

Develop Tools

Android SDK+ JDK +Eclipse

P-Language

Java

Operating Temp

-10°~ 50℃

Storage Temp

-20°~ 70℃

Humidity

0~95% (non-condensing)

Sealing

IP67

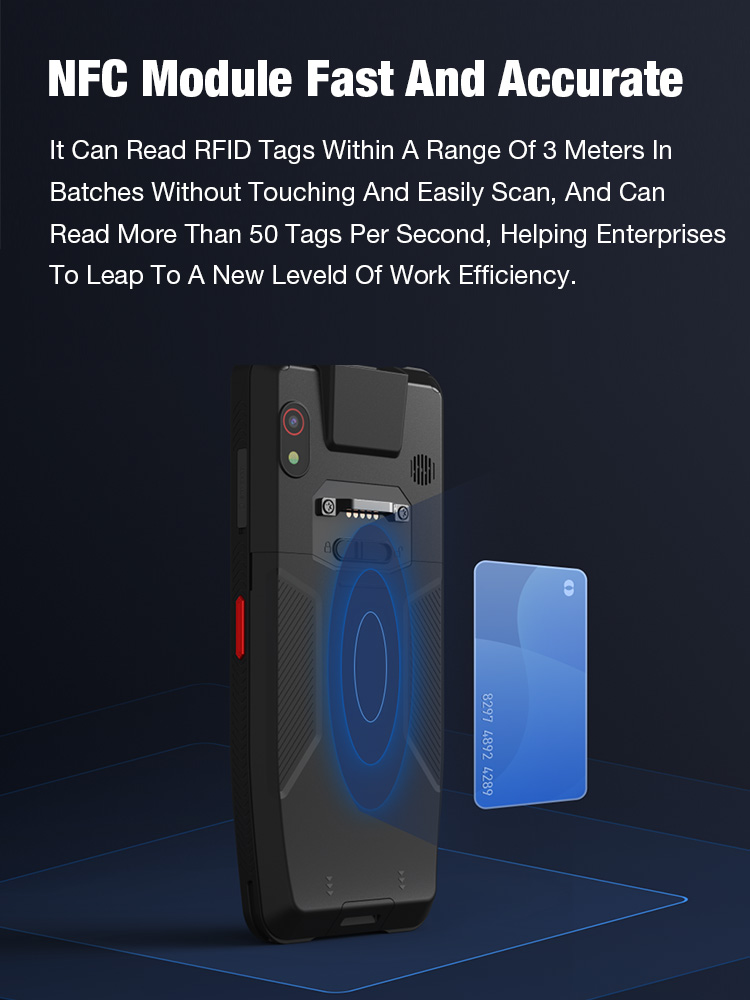

NFC/HF RFID

Protocol

ISO14443A/14443B/15693

Frequency

13.56MHz

NFC type

NXP PN557

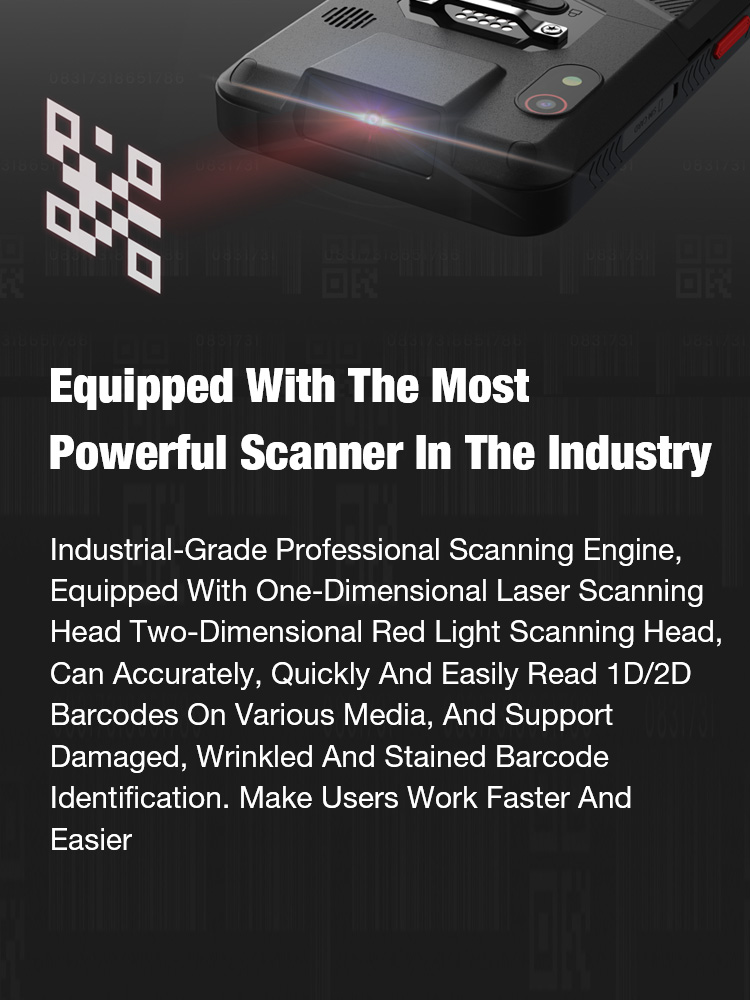

2D Image Scanner

Method

CMOS Image

Scan Speed

60scans/sec

Scan Angle

360°angle, Elevation angle ± 55°, Eeflection angle ± 55°

Identification accuracy

2D27.5mil, 1D25mil

Decoding Type

QR Code, Data Matrix, PDF417, UPC-A, UPC-E, EAN-8, EAN-13, ISBN, Code 128, GS1128, ISBT 128, Code 39, Code93,Code 11, Interleaved 2 of 5, Industrial 2 of 5,Matrix 25, Standard 25, Coda bar, MSI/MSI PLESSEY, GS1 Data Bar

DPM

Support DPM scanner (optional)

1D Laser Scanner

Speed

100 lines/sec

Scan Angle

±50°

Identification accuracy

≧4mil

Decoding Type

UPC-A, UPC-E, UPC-E1, EAN-13, EAN-8, ISBN/ISSN, Code 39, code39 (ASCII full), Interleaved 2 of 5, Industrial 2 of 5,Matrix 25,Codebar(NW7), Code 128, UCC/EAN 128, ISBT128, code 93, MSI/Plessey, UK/Plessey, China post, GS1 Data Bar
