applications

Widely used in express logistics, financial insurance, warehousing, retail stores, supermarkets, restaurants and other industries

function indication
Product packaging list

function indication

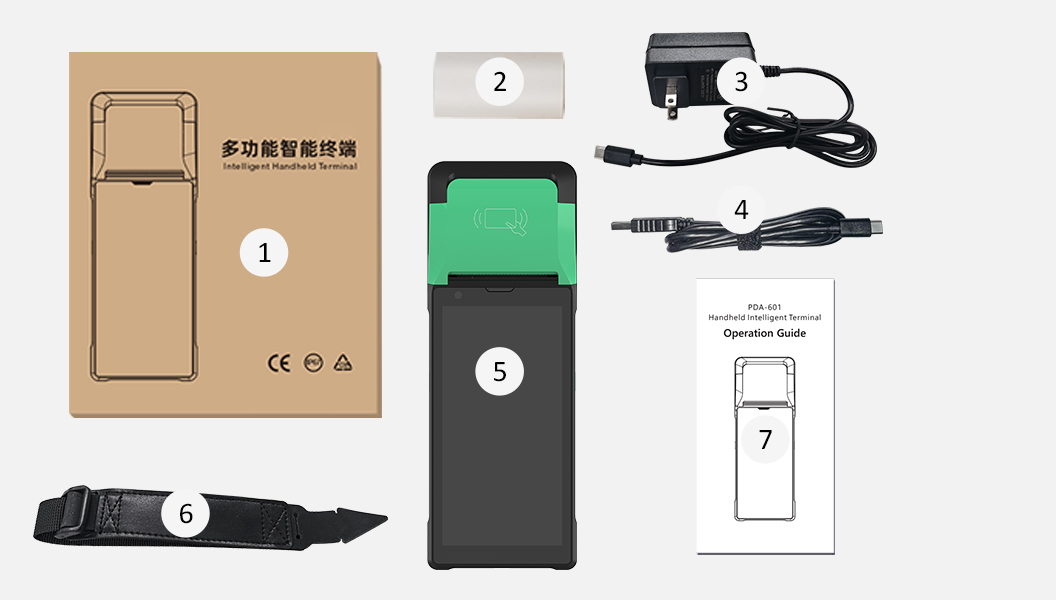

Product packaging list

1.Box*1,
2.thermal printing paper*1,
3.charger*1,
4.USB data cable*1,
5.machine*1,
6.Wristband*1,
7.Instruction manual*1,

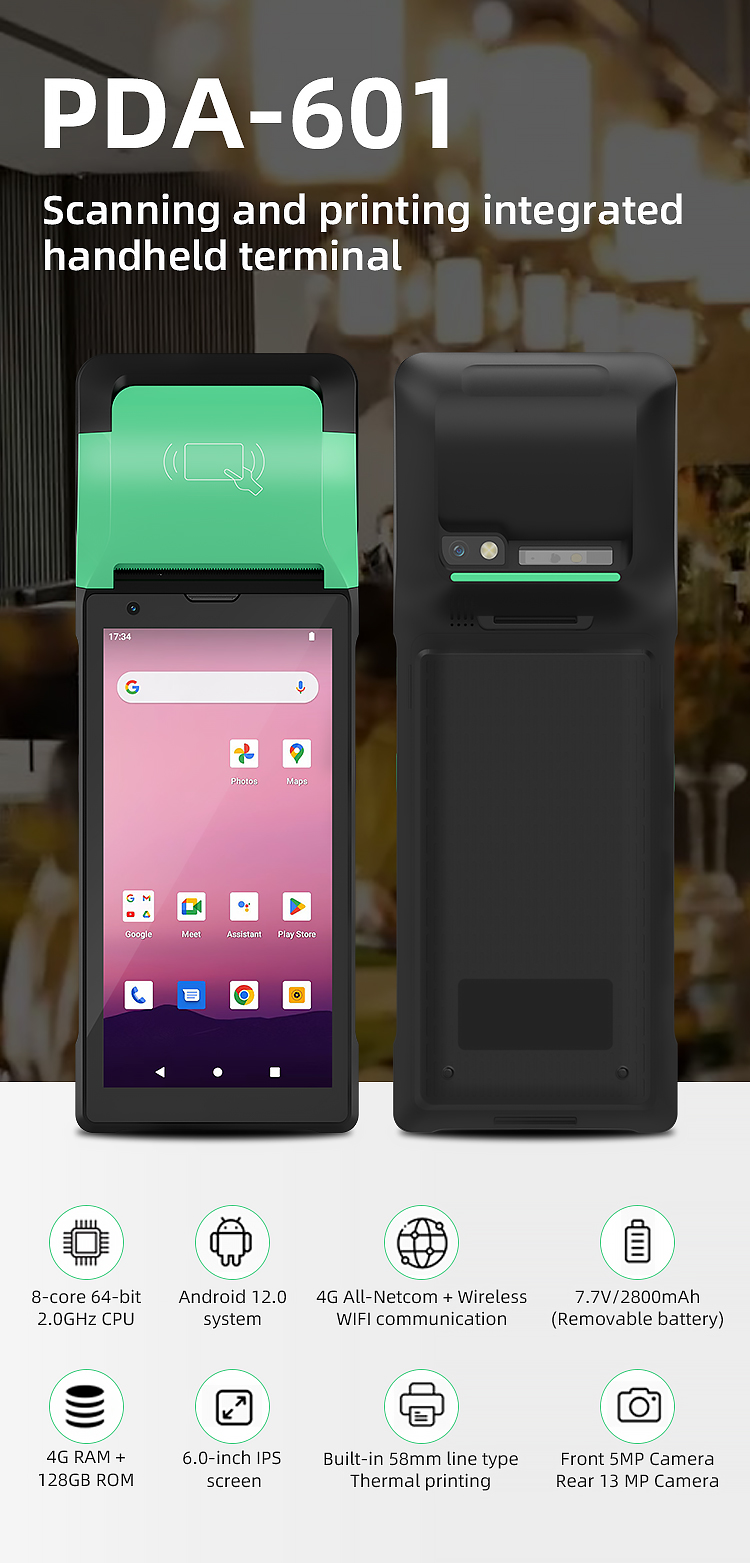

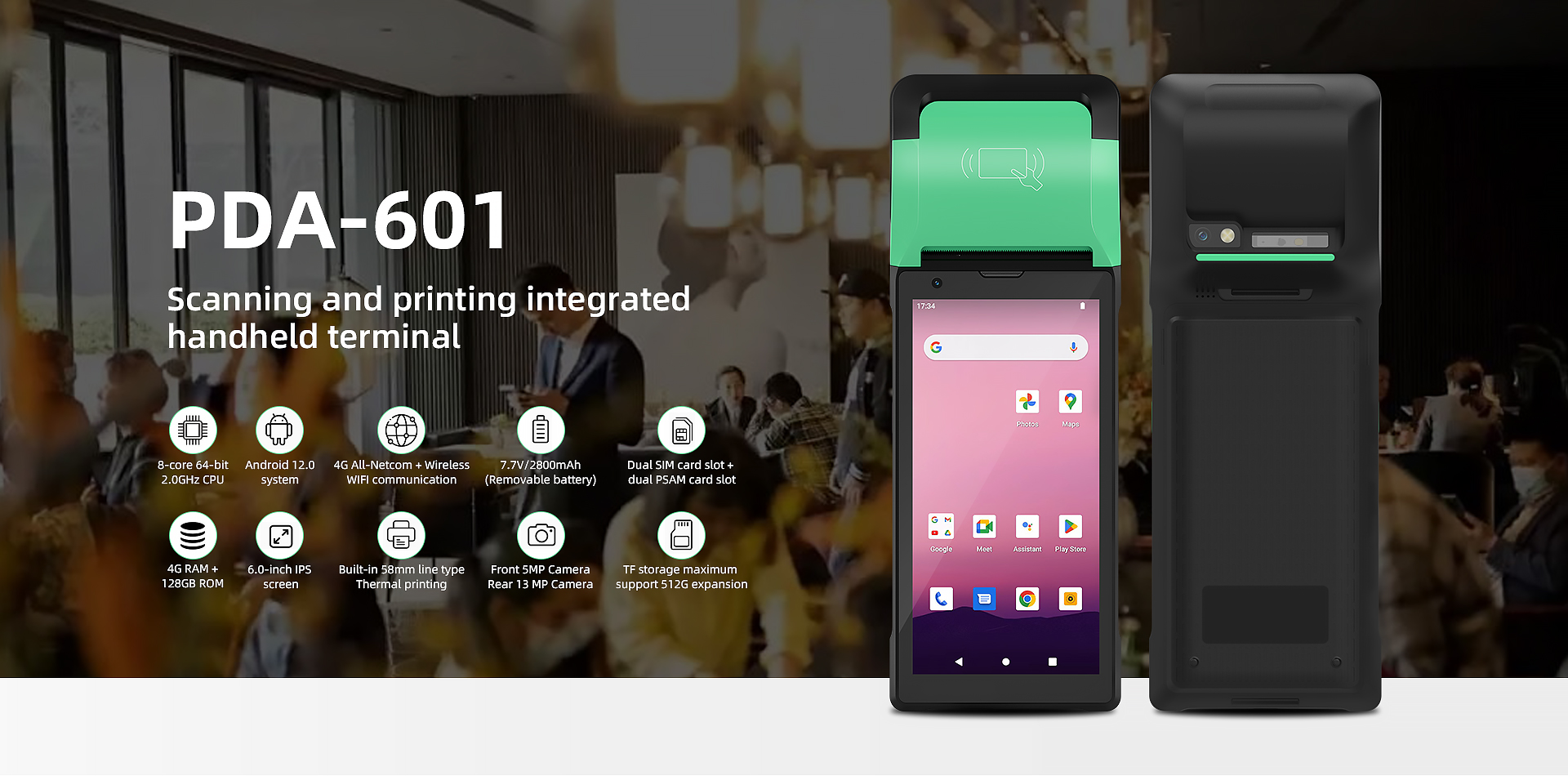

PDA-601 Product parameters

System Configuration

Processor

8-core 2.0GHz CPU

OS

Android 12.0

Memory

4GB RAM+128GB ROM

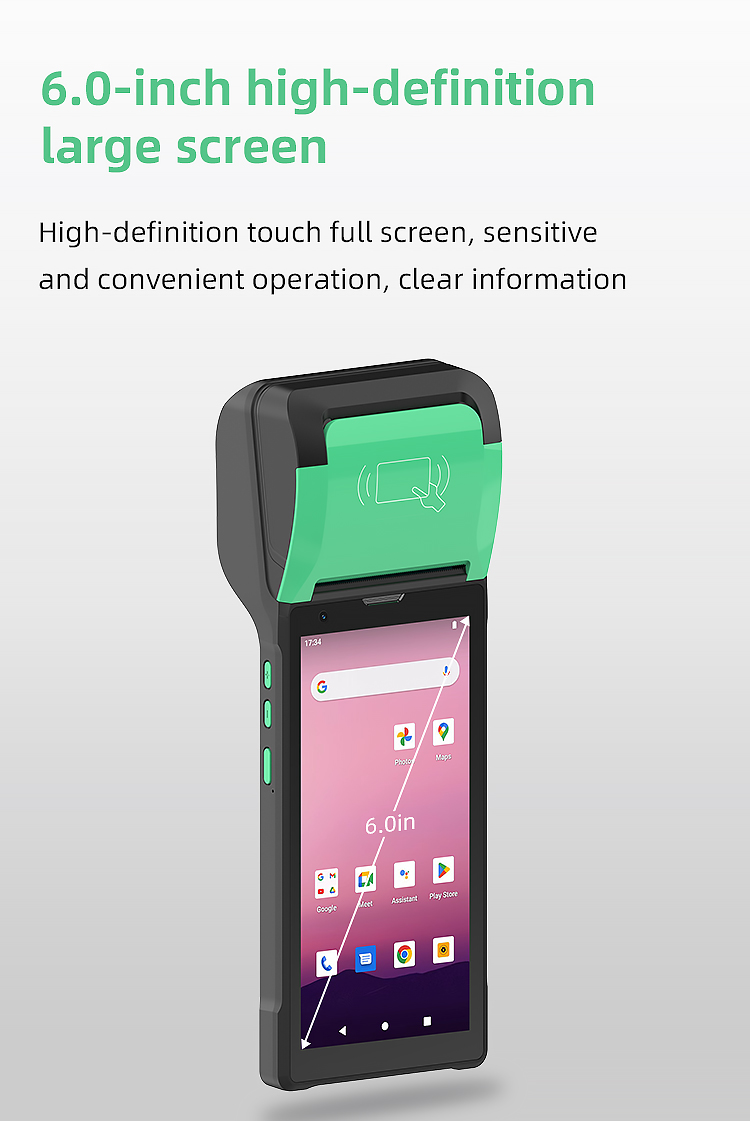

Display

6.0inch IPS 720x1440 High Resolution

front camera

5.0 MP support face recognition

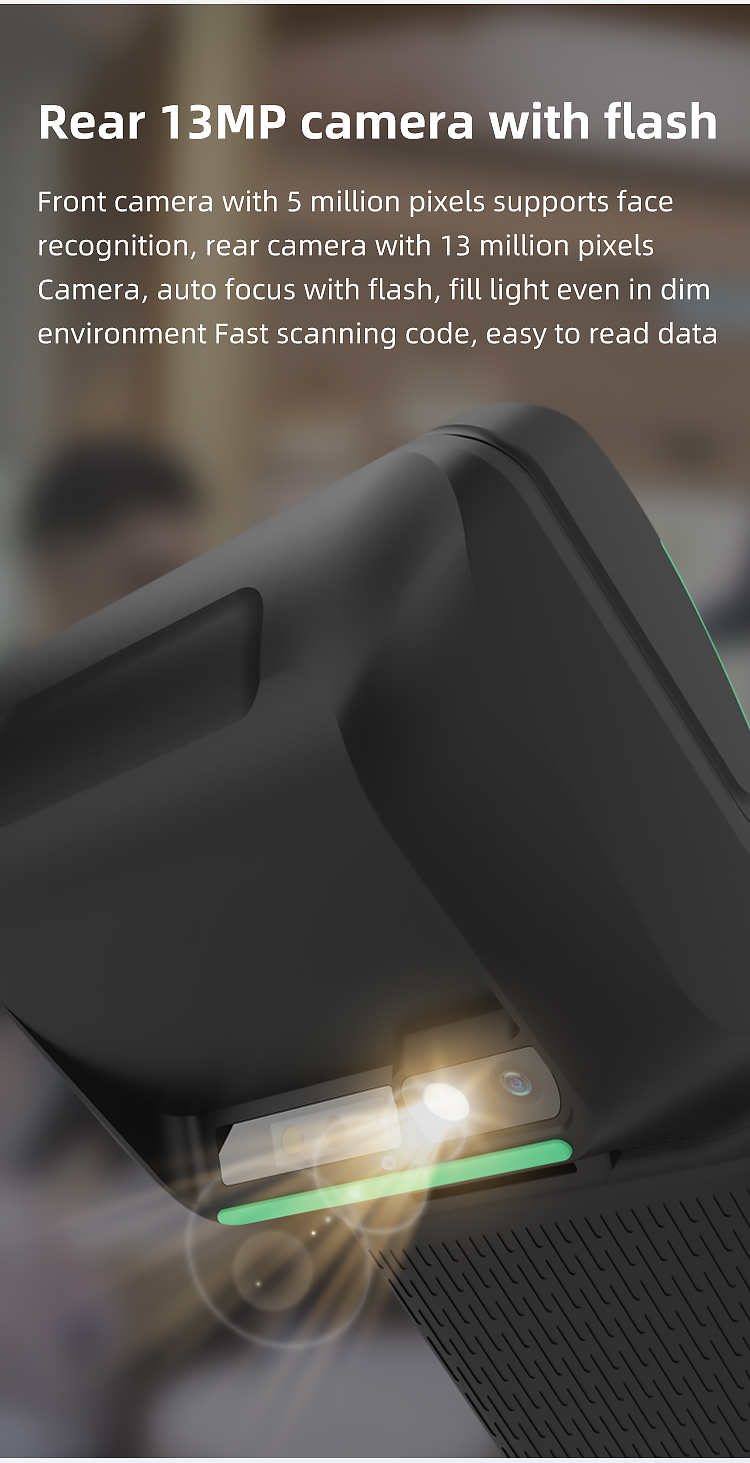

Rear camera

13.0 MP autofocus with flash light

printer

58mm(2inch) thermal printer

Touch screen

Industrial-grade capacitive touch panel

Keypad

Scan key/Power key/Custom key/Volume key

Notification

Vibrator/LED/Speaker

Battery

7.7v 2800mAh rechargeable lithium polymer battery

Audio

Built-in microphone/Speaker

Sensor

G-sensor

Charging method

Type-C , 9V-2A support PE Quickly Charge

TF card

Supports TF *1 max: 512G

Extension ports

SIM card*2, PSAM card*2，MicroSD card*1 ，Type-C USB interface (fast charge)*1，Support UHF/ customer plug-in module

Structural Parameters

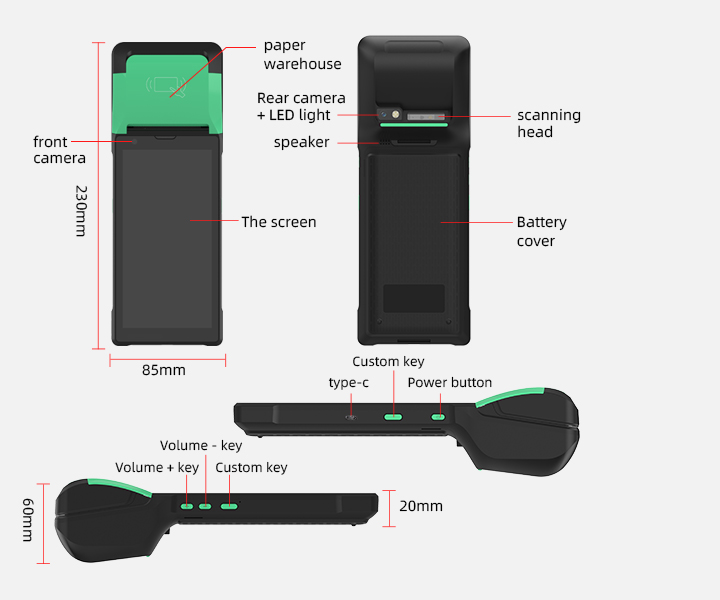

Dimensions (LxWxD)

Approx: 230*85*60mm

weight

430g(battery included)

color

black

Communication Transmission

WLAN

W-Fi 802.11a/b/g/n/r/ac (2.4G+5G dual-band W-Fi)

WWAN

GSM (B2/B3/B5/B8)
CDMA (B1/B2/B5/B8)
FDD(B1/B2/B3/B5/B7/B8/B20/B28a&b)
TDD (B38/B39/B40/B41) C network (BC0 Bc1)

Bluetooth

Bluetooth5.0,Support BLE

Position

GPS/AGPS/Beidou/Galileo/ GLONASS/QZSS

Operating Environment

Develop Tools

Android SDK + JDK +Eclipse

P-Language

Java

Operating Temp

-20℃ ~+ 50℃

Storage Temp

-40℃~ 70℃

Humidity

0 ~ 95% (non-condensing)

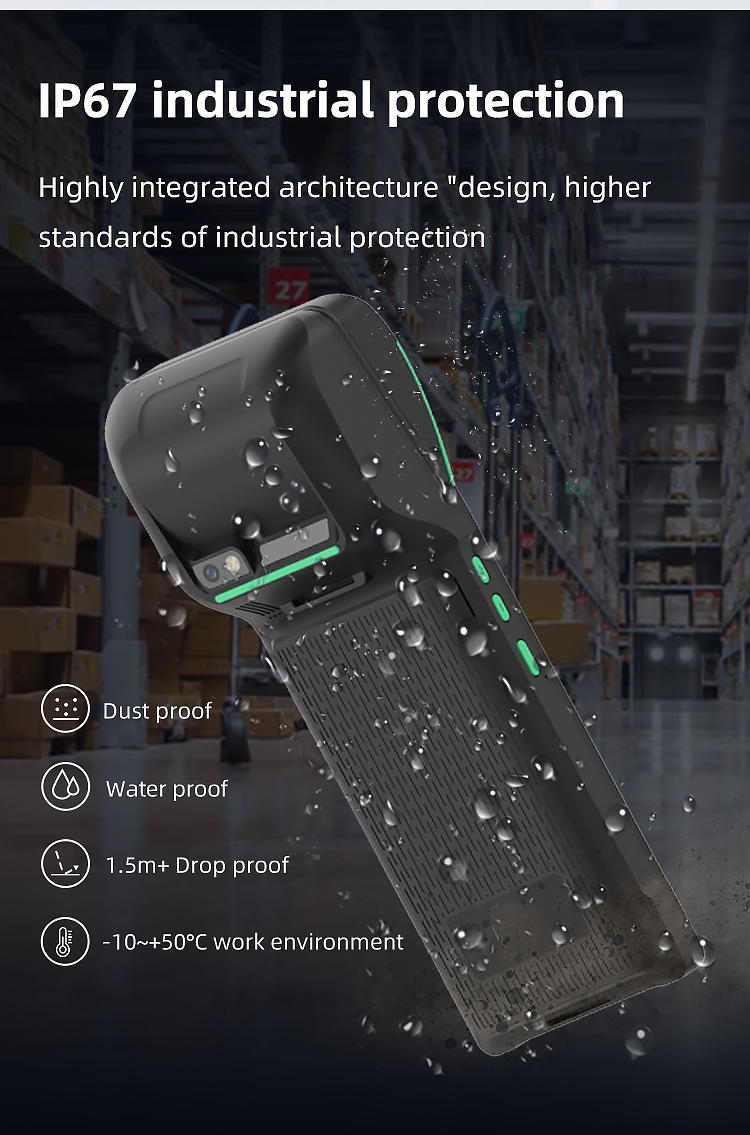

Sealing

IP67

Drop test

1.5 meter drop test

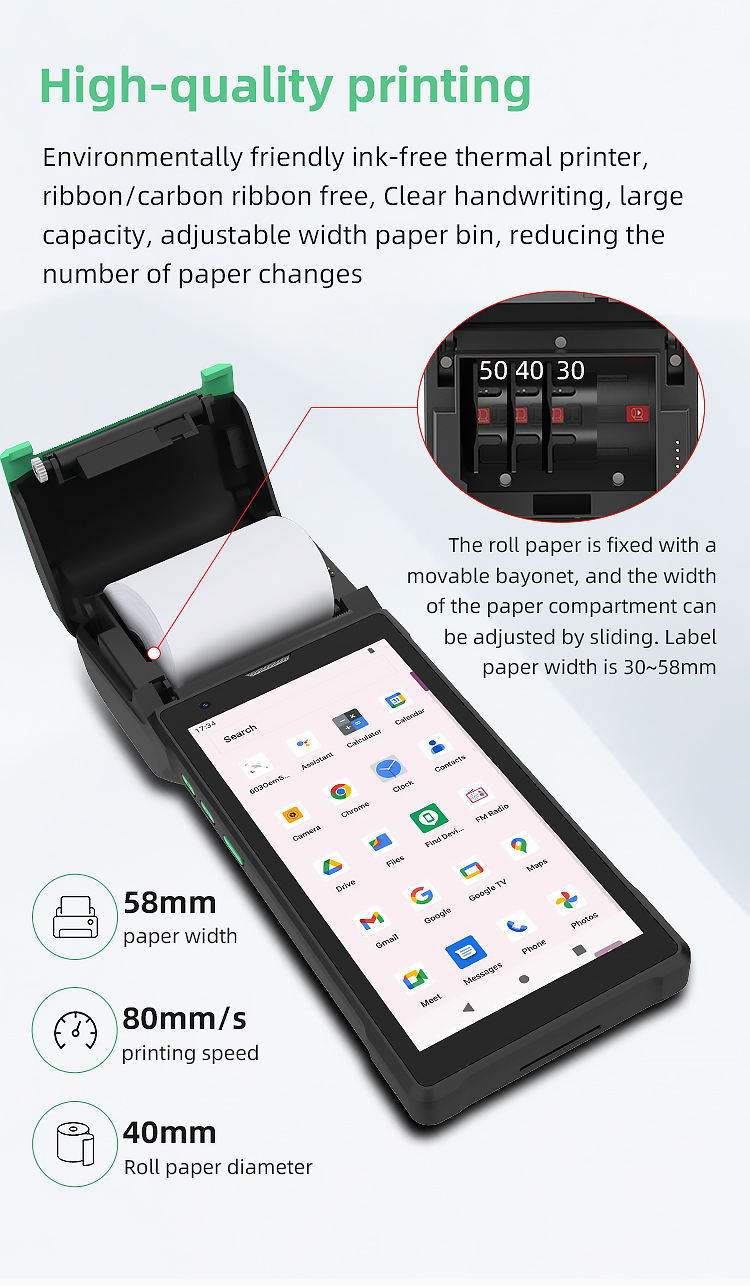

Printer

printing method

Built-in line thermal printer

Print width

58mm

print media

Thermal paper and thermal stickers

sensor

Black mark/out of paper/overheating and overvoltage protection

rint type

Text/image/barcode/QR code

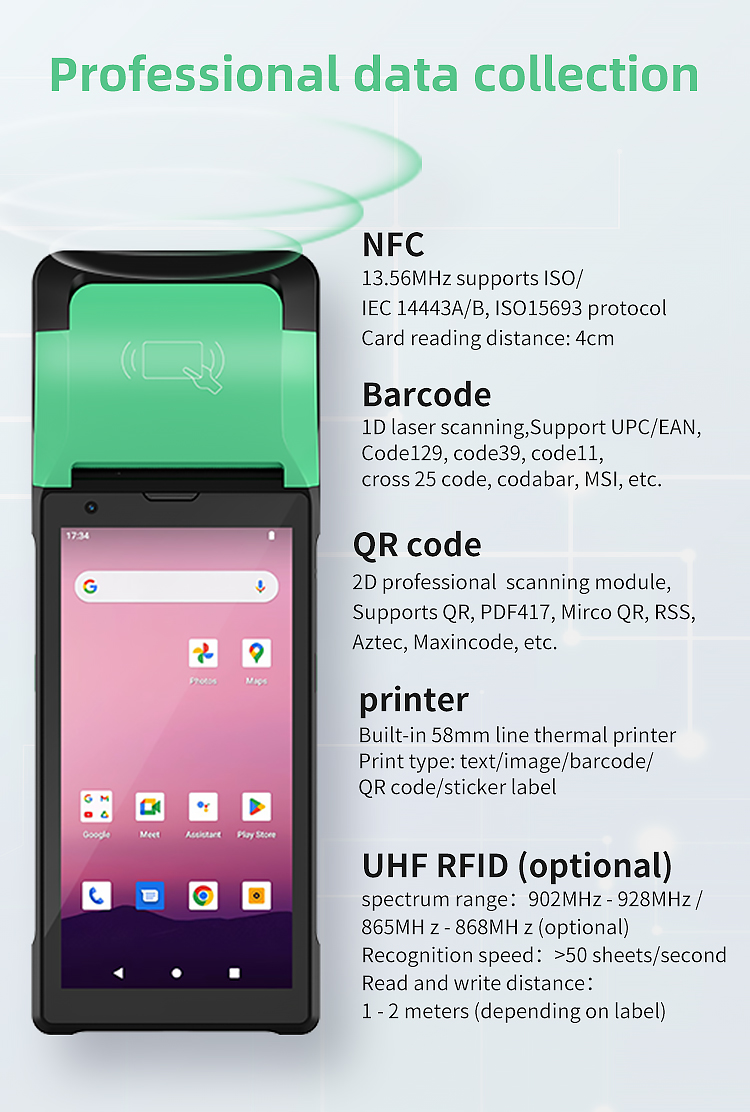

NFC/Barcode/QR code

NFC

13.56MH supports ISO/IEC 14443A/B, ISO15693 protocol Card reading distance: 4cm

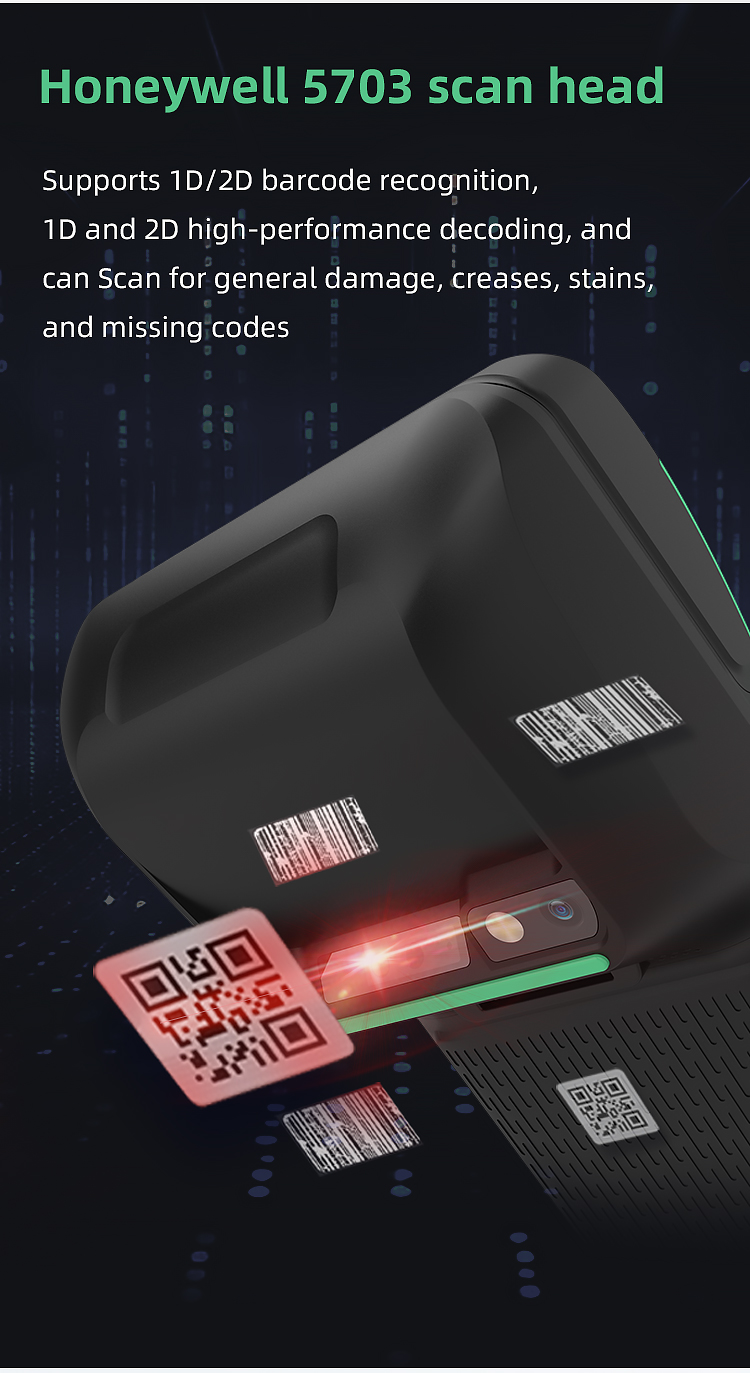

Barcode

1D laser scanning：Support UPC/EAN, Code129, code39, code11, cross 25 code, codabar, MSI, etc.

QR code

2D professional scanning module：Supports QR, PDF417, Mirco QR, RSS, Aztec, Maxincode, etc.

UHF RFID (Optional)

spectrum range

902MHz - 928MHz /865MH z - 868MH z (optional)

Security module

EPCglo bal UH F Class 1 Gen 2/ ISO 180 00 - 6 C

Recognition speed

>50 sheets/second

storage

2000 pieces

Read and write
distance

1 - 2 meters (depending on label)
