Industrial grade wireless scanner

QS - S03

Industrial grade wireless scanner

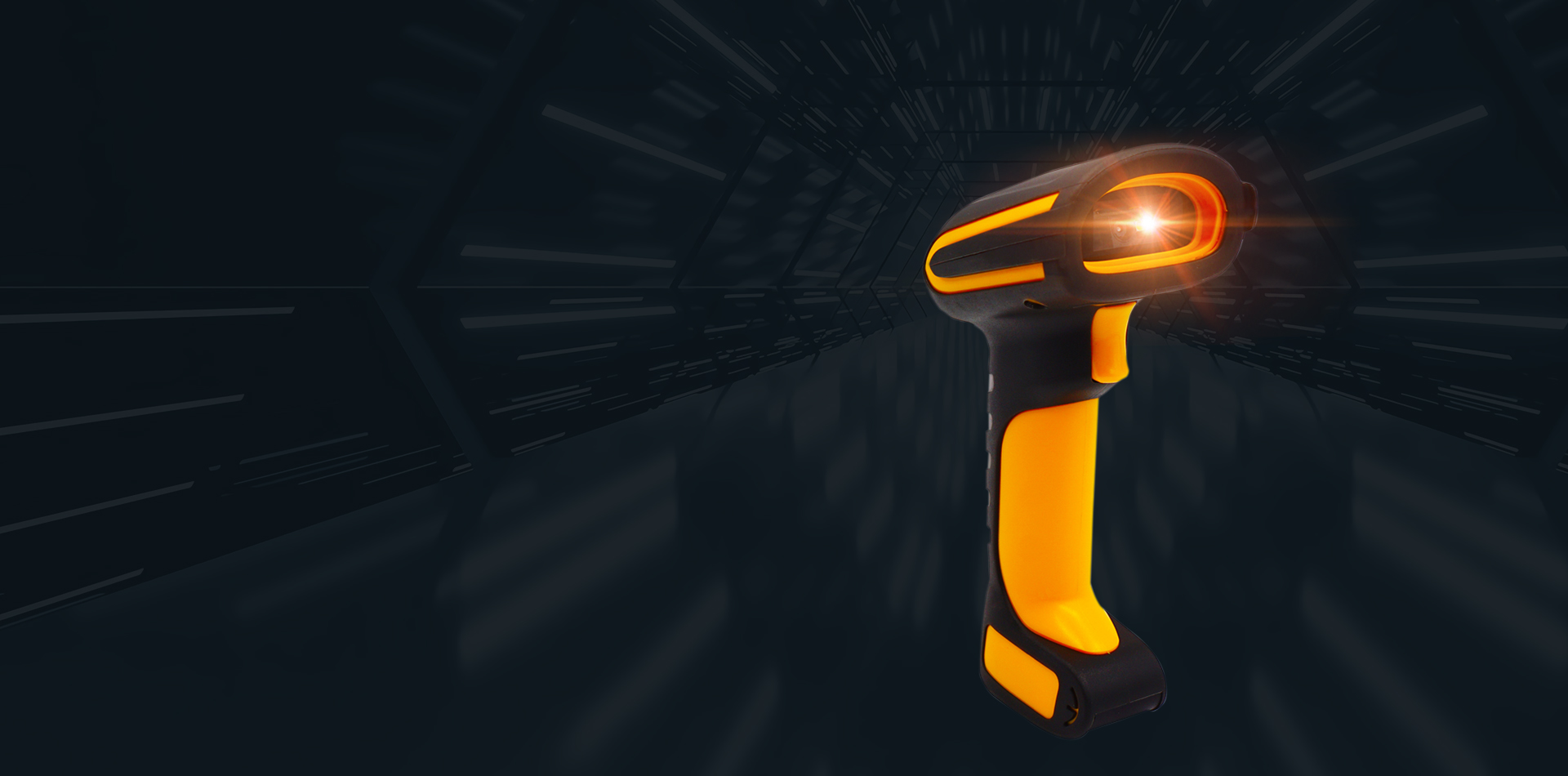

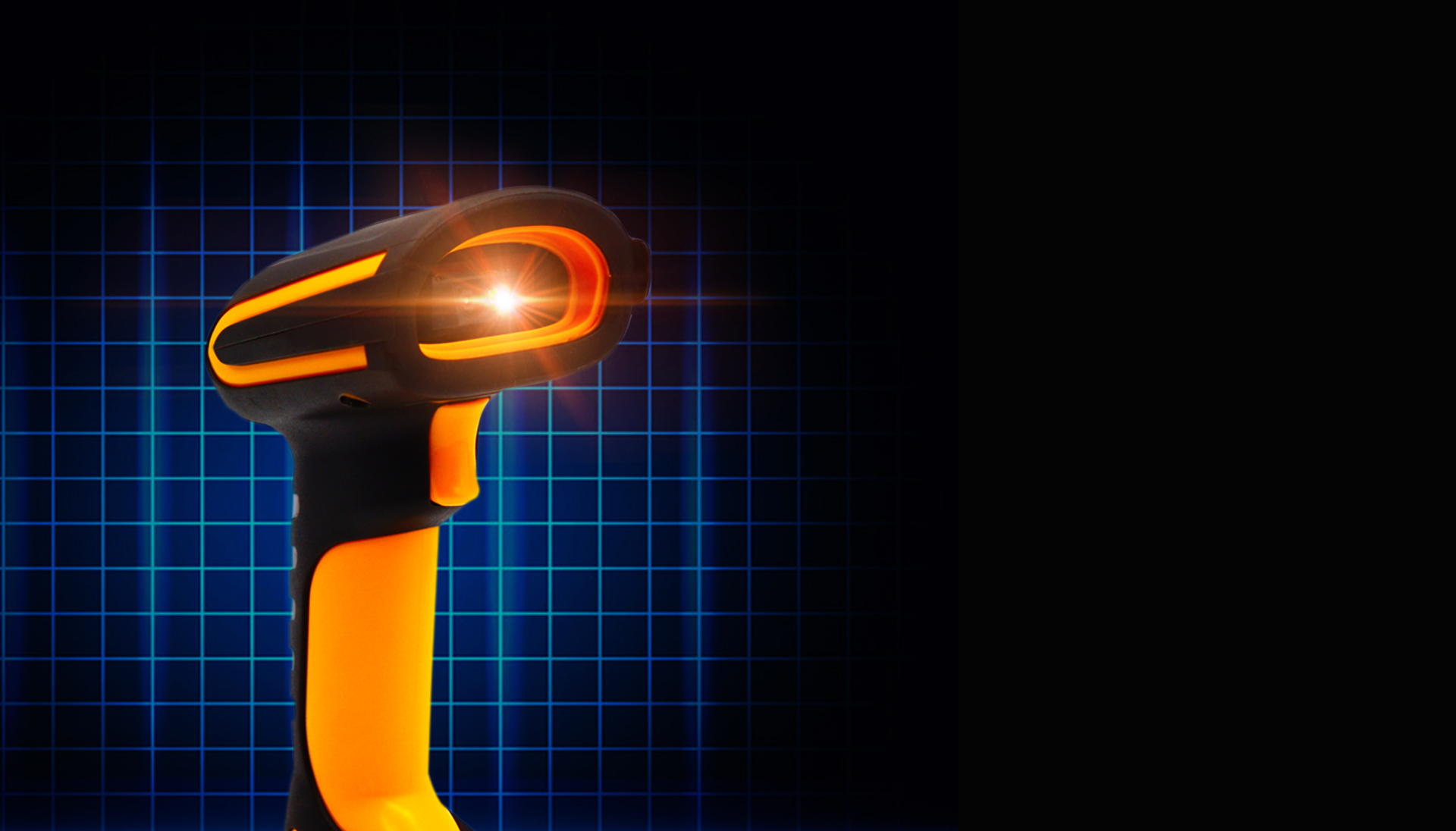

Zebra 4750 scanning head

Long service life, high scanning sensitivity and easy to handle various barcodes

Low power consumption + long standby time

Rechargeable lithium battery + energy-saving optimized circuit,
can work continuously for 10-15 hours after being fully charged
and can be used for long standby scan gun .It can be set to
enter the sleep state if it does not work.

Offline storage function

You can scan without connecting the device and the scanner will automatically record the scan.The information can be uploaded without missing information after connecting to its device and it can be guaranteed before the upgrade.It Stores 5000 barcodes

IP67 protection grade

Dustproof and waterproof, it can still work normally when dropped from a certain height on the concrete floor and can be used in complex and harsh working environments in all walks of life

S-03 Product Parameters

Specification

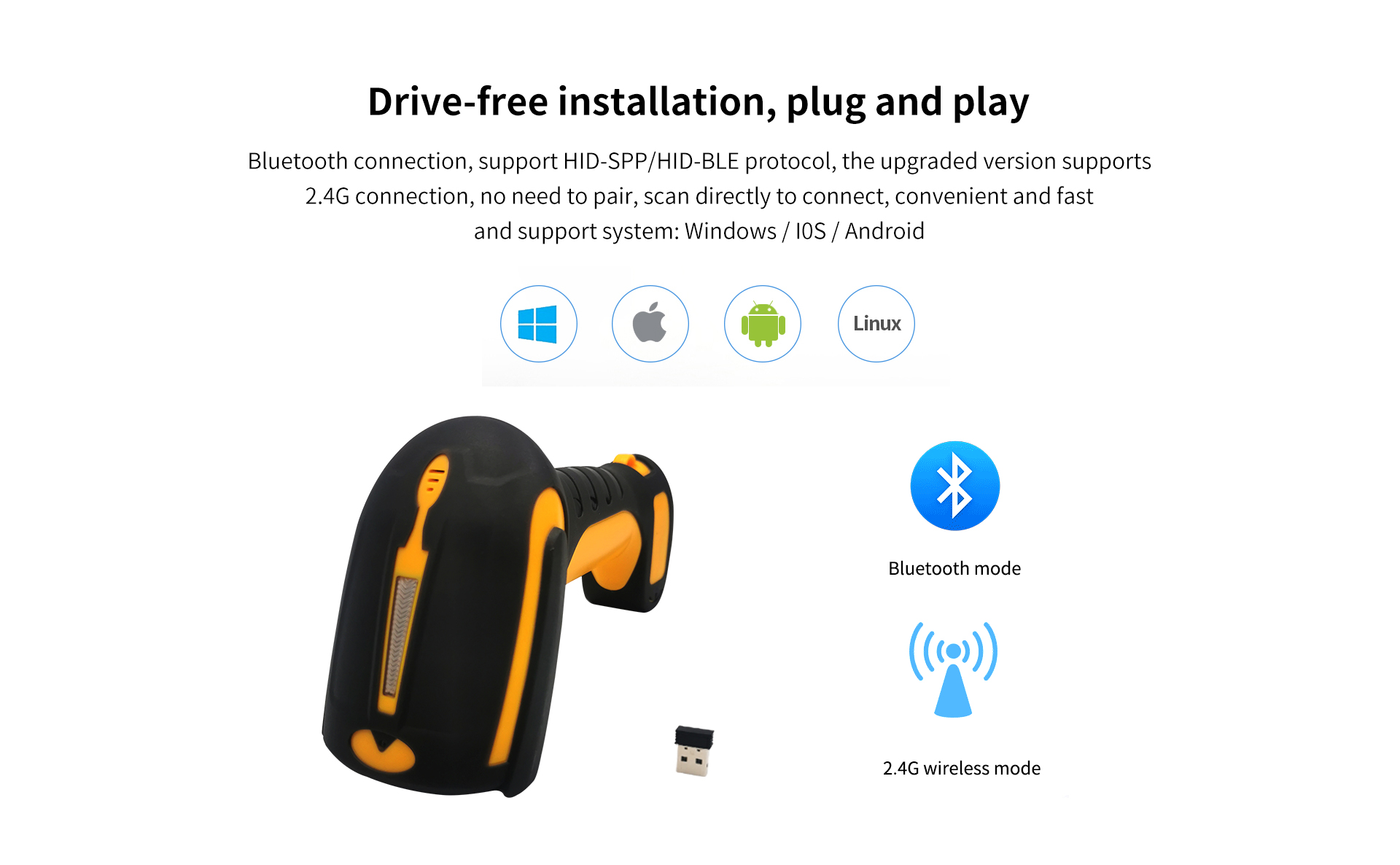

Data Transmission

Bluetooth 2.0+ EDR2.4G-2.5G (ISM public frequency range)

Communication Range

30m (free space)

Support System

Android, l0S, Saipan, Windows

Status Indicator

buzzer, LED, vibrator

Keyboard Language

English/French/ltalian/German/
Spanish/Portuguese etc.

Decoding Type

UPC-A, UPC-E, UPC-E1, EAN-13, EAN-8, ISBN/ISSN,code39,code 39(ASCII fll),Codle 32,trioptic 39, interleaved 2 of 5, Industrial2 of5,
Matrix 25,standard 25,codabar,codabar(NW7), code 128,UCC/EAN 128, ISBT128, code 93, code11, code 11(USD-8)，MSI/Plessey, UK/Plessey, China post, GS1 DataBar,QR code, PDA417 Data Matrix ,etc. Support DPM(optional)

Data Storage

real-time upload/offline storage mode

Memory

4M ROM 20000pcs data memory

Environment

storage temperature -20C-70°C，humidity 0-95%(no condensation)

Protocol

SPP/HID/BLE

Weight

465g

Size

180mm*110mm* 80mm

Battery

built-in 2000mah lithium battery
