Mini Ring Scanner

QS - S02

Mini Ring Scanner

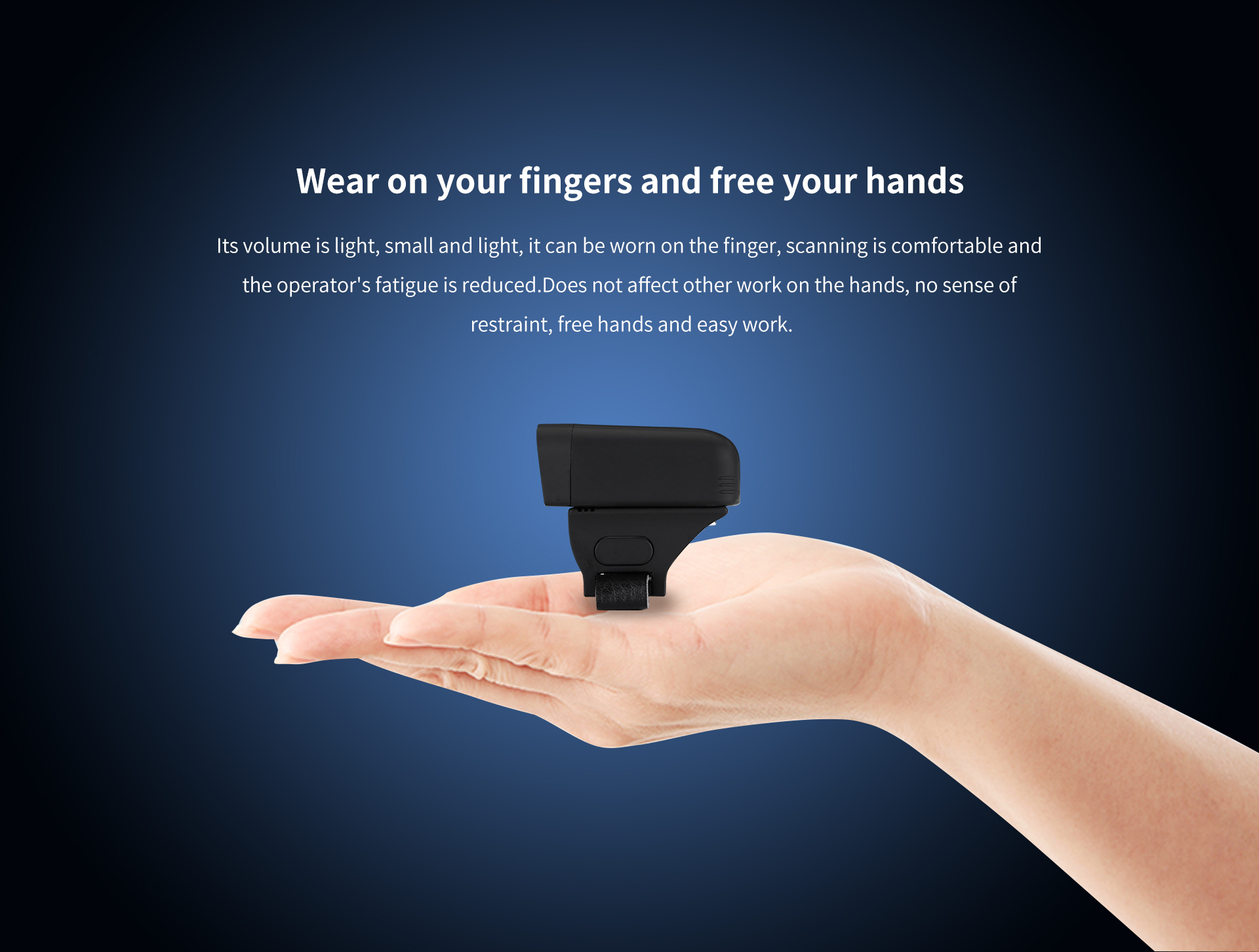

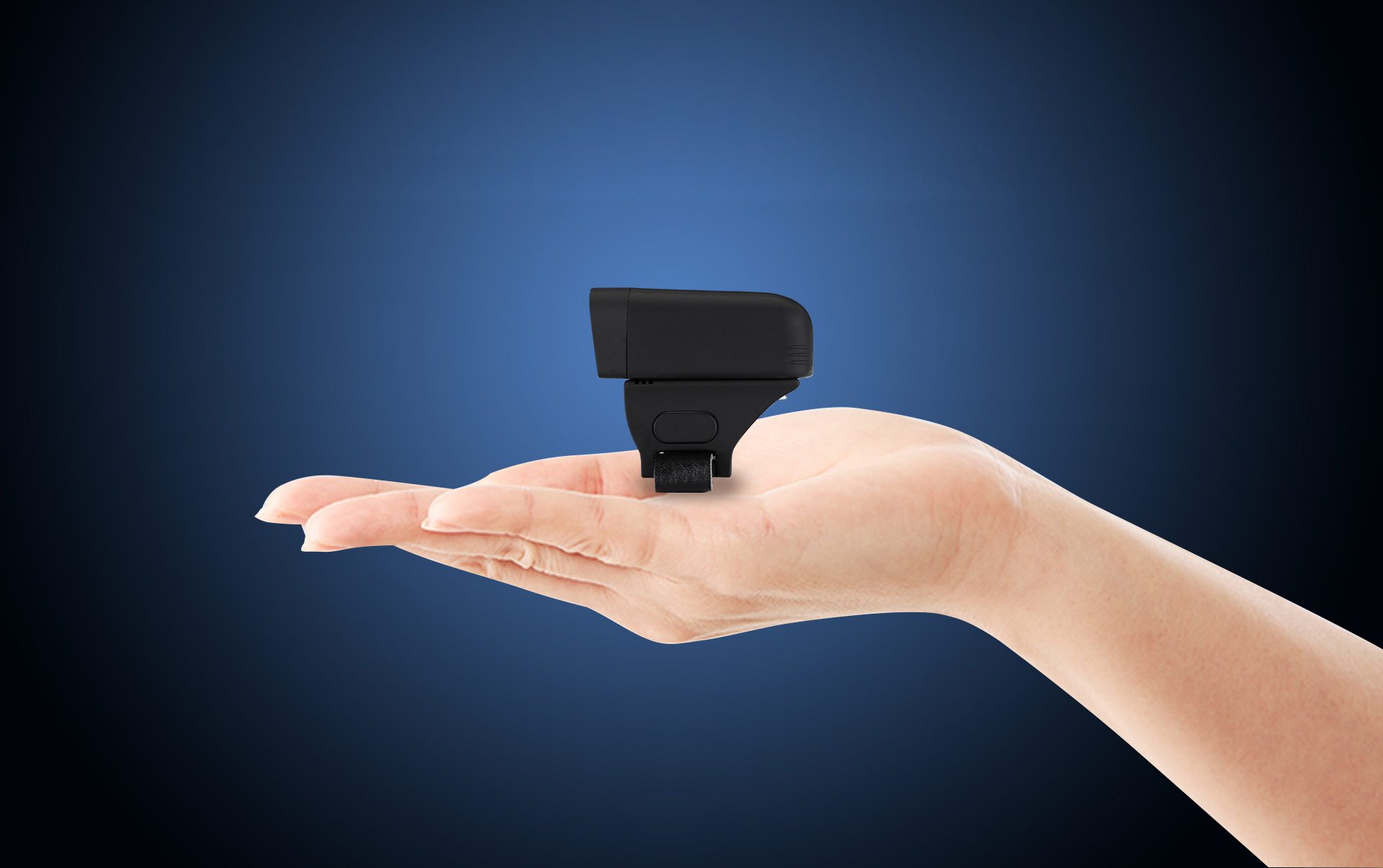

Wear on your fingers and free your hands

Its volume is light, small and light, it can be worn on the finger, scanning is comfortable and the operator's fatigue is reduced.
Does not affect other work on the hands, no sense of restraint, free hands and easy work.

Low power consumption + long standby time

300mAh lithium polymer battery, fully charged can continuously scan about
1500 barcodes and scanning gun. It Can be set to not work and enter sleep state.

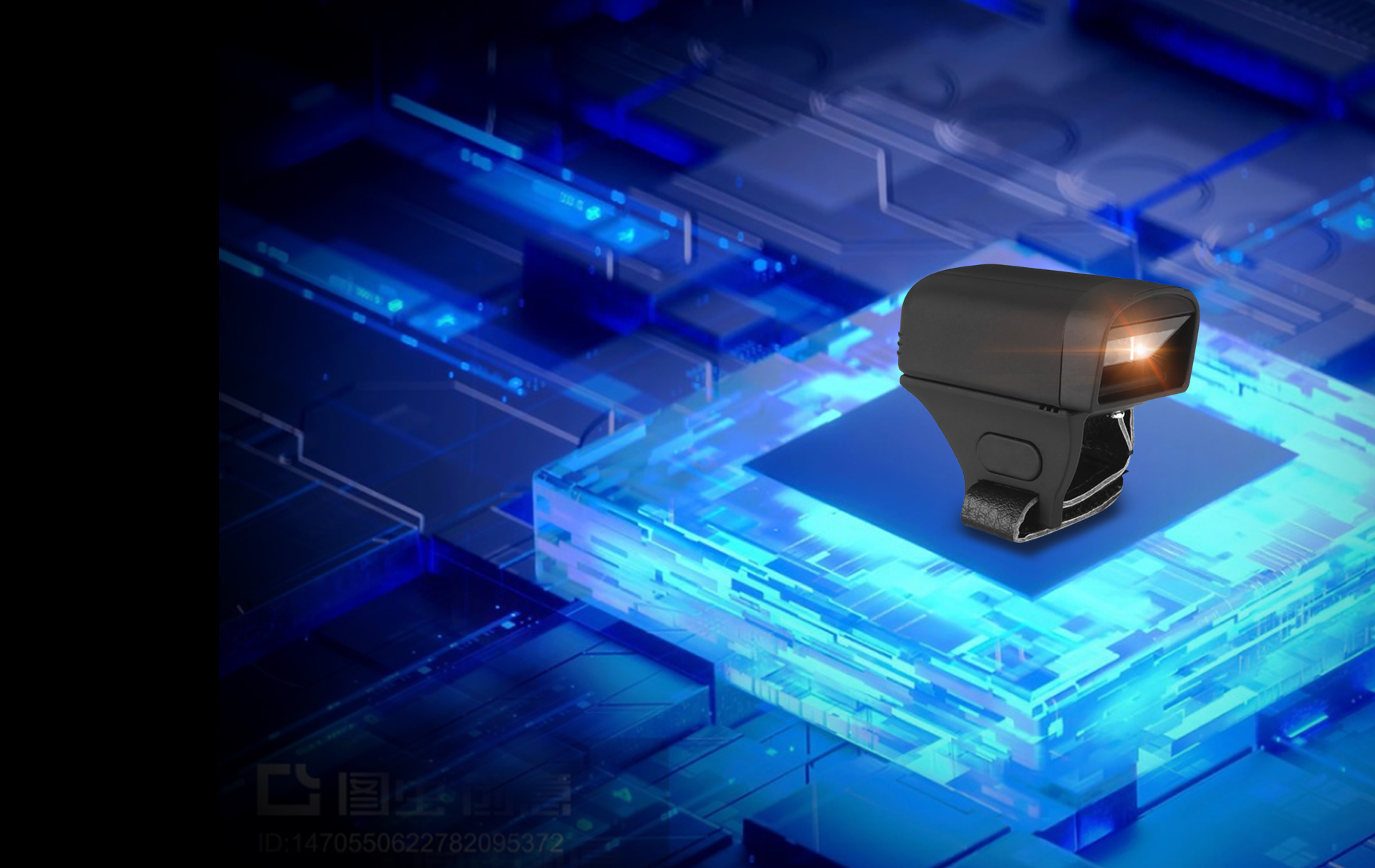

16MB large memory

You can scan without connecting the device, and the scanning gun will automatically record the scanned information. After connecting to the device, there will be no lost uploads.
The standard version has 4MB of memory that can store 5000 barcodes. Upgraded version, memory can be expanded to 16MB, and if the content is a 10 bit barcode, it can store over 1,000,000 barcodes

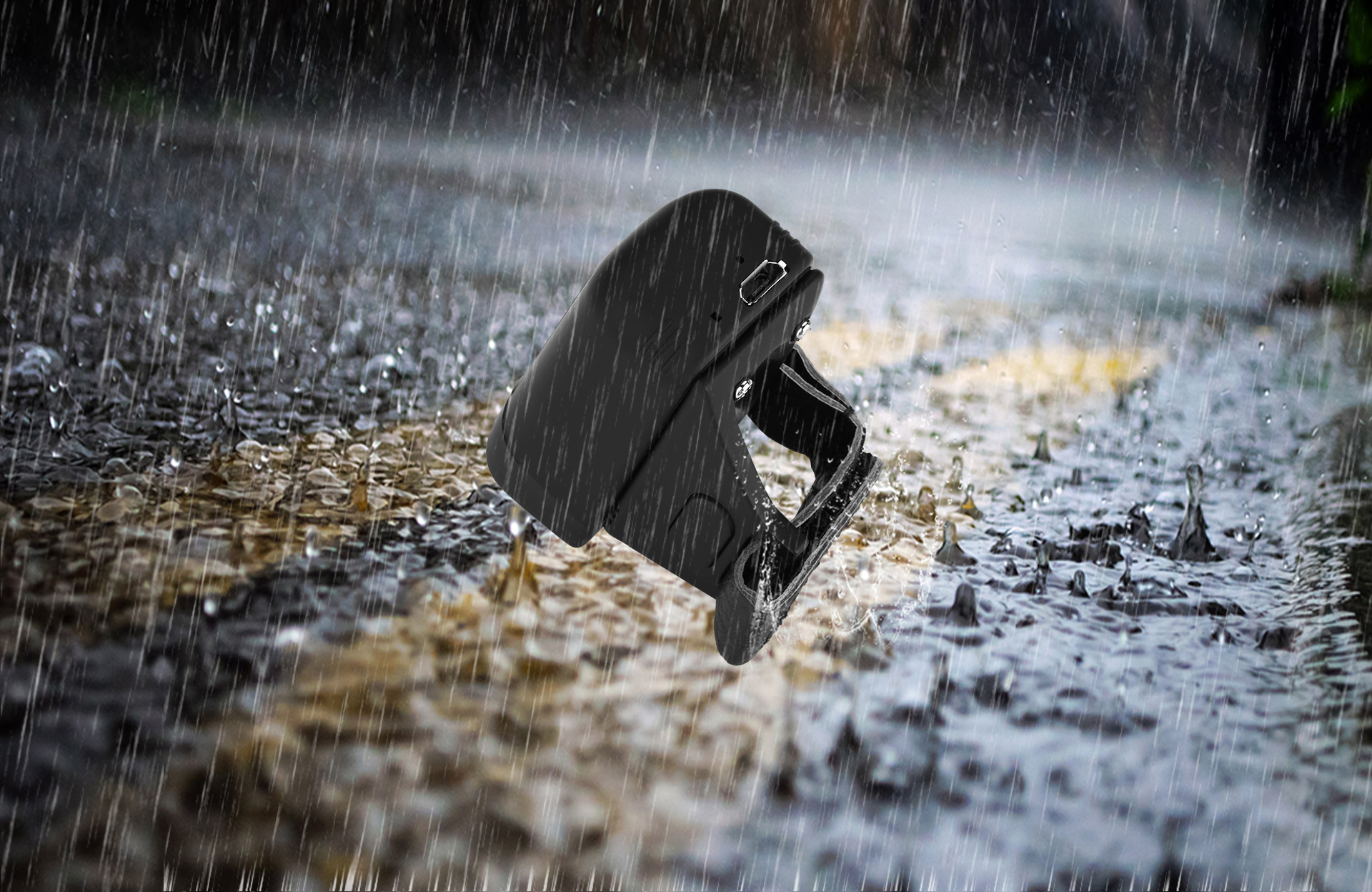

Waterproof and dustproof

With its Shock-resistant and drop-resistant, so you can
use it with confidence in outdoor environments

S-02 Product Parameters

System Configuration

Processor

ARM M332 bit 108MHz processor

System Internal Memory

RAM 128kbs

Flash

ROM 4MB
ROM 16MB (optional)

Button

1 button for power and scan

Prompt

LED light/Buzzer/Vibration

Battery

Internal 300mAh rechargeable battery

LED Status

Power/Battery/Bluetooth/ScanStatus

Charging

USB 5V

Structural parameters

Dimension

45*28*38mm

Weight

40g

Data communication

Communication

Bluetooth 3.0

Protocol

SPP/HID

Use environment

development tools

Provides SDK for SPP mode

Language

Java

Support O.S

Android/IOS/Windows

Scan mode

Standard mode/ inventory mode

Settings

Sleep,Buzzer,Vibration,Keyboardetc

Operating temperature

-10° ~ 50°C

Storage temperature

-20°~ 70°C

Humidity

0 ~ 95% (without condensation)

Protection level

IP65

with 1D CCD barcode scanner engine (optional)

Collection method

CMOS video

Scan speed

1/60 s

Scan angle

Angle 360°, Angle of elevation ± 55°, Angle of deviation ± 55°

Resolution

5mil

Code Type

EAN, EAN-8, EAN-13, UPC-A, UPC-E, Code 39,Code 93, Code 128, Code 12 8C, UCC/EAN 128, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, GS1 Databar, GS1 Composite Code, Matrix 2 / 5, Code 11, Industrial 25, Standard 25, Plessey, MSI-Plessey, etc

1D laser barcode scanner engine(optional)

Collection method

Visible light secondary tube, wave length 650 nanometers

Scan speed

100 lines/second

Scan angle

Angle 360°, Angle of elevation ± 55°, Angle of deviation ± 55°

Resolution

≥4mil

Code Type

UPC-A, UPC-E, UPC-E1, EAN-13, EAN-8, ISBN/ISSN, 39 yards, 39 yards (ASCII Full size), 32 yards, Trioptic Code 39, Cross 25 yards, Industry 25 yards (Discrete 2 of 5), Matrix 25 Code, Kudaba Code (NW7), 128 yards, UCC/EAN 128, ISBT128, 93 yards, 11 yards (USD-8), MSI/Plessey, UK/Plessey, China Post Code, GS1 DataBar

2D(QR code) scanner engine (optional)

Collection method

CMOS video

Scan speed

1/60 s

Scan angle

Angle 360°, Angle of elevation ± 55°, Angle of deviation ± 55°

Resolution

≥7.5mil

Code Type

QR Code, Data Matrix,PDF417,UPC-A,UPC-E,EAN-8,EAN-13,ISBN,Code 128, GS1 128,ISBT 128,Code 39,Code 11,Interleaved 2 of 5,Industrial 2 of 5, Matrix 25, Standard 25,Coba bar,MSI/MSI PLESSEY,GS1 Data Bar

optional

Supports DPM (Part Marking Code)
