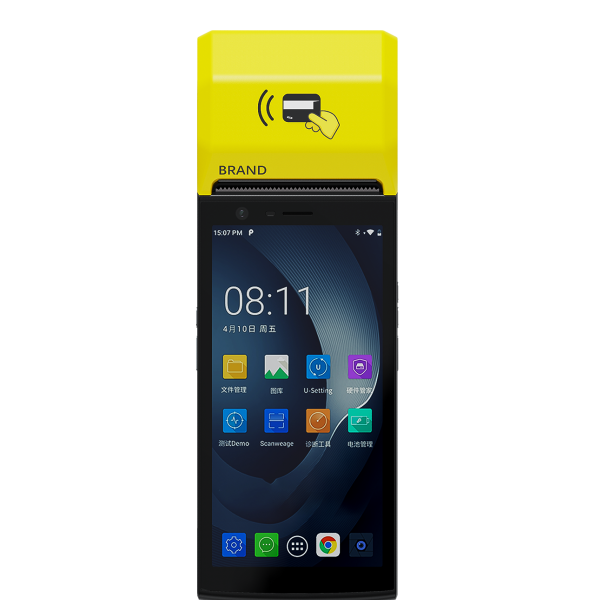

PDA-601

Scanning and printing integrated
handheld terminal

applications

Widely Used In Express Logistics, Financial Insurance, Warehouses,
Retail Stores, Supermarkets And Other Industries

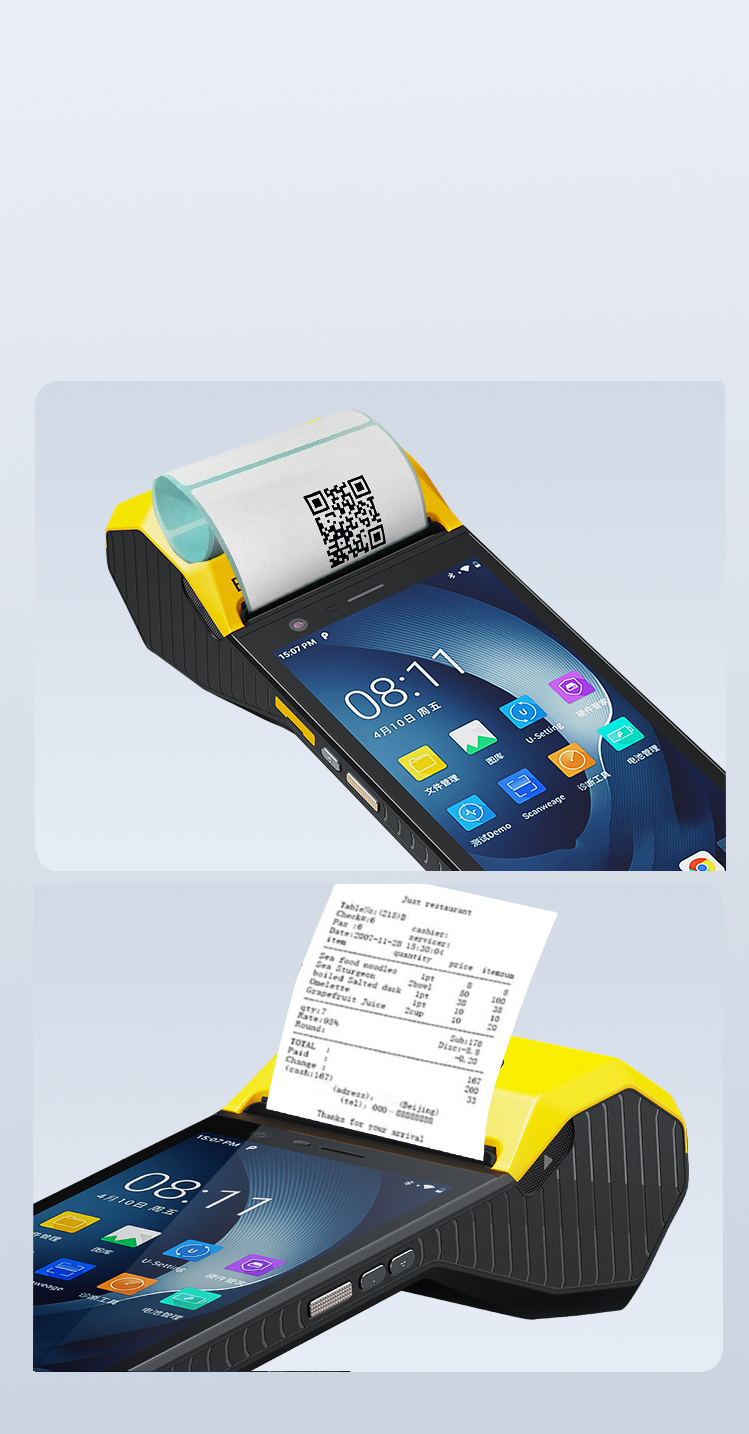

Built-In 58mm Thermal Printer

Support Thermal Paper/Adhesive Printing, No Ink Required, Easy To Carry,
40mm Larger Diameter Paper Bin, Say Goodbye To Frequent Paper Changes

Ticket And Label Paper Can Be Switched According To Demand

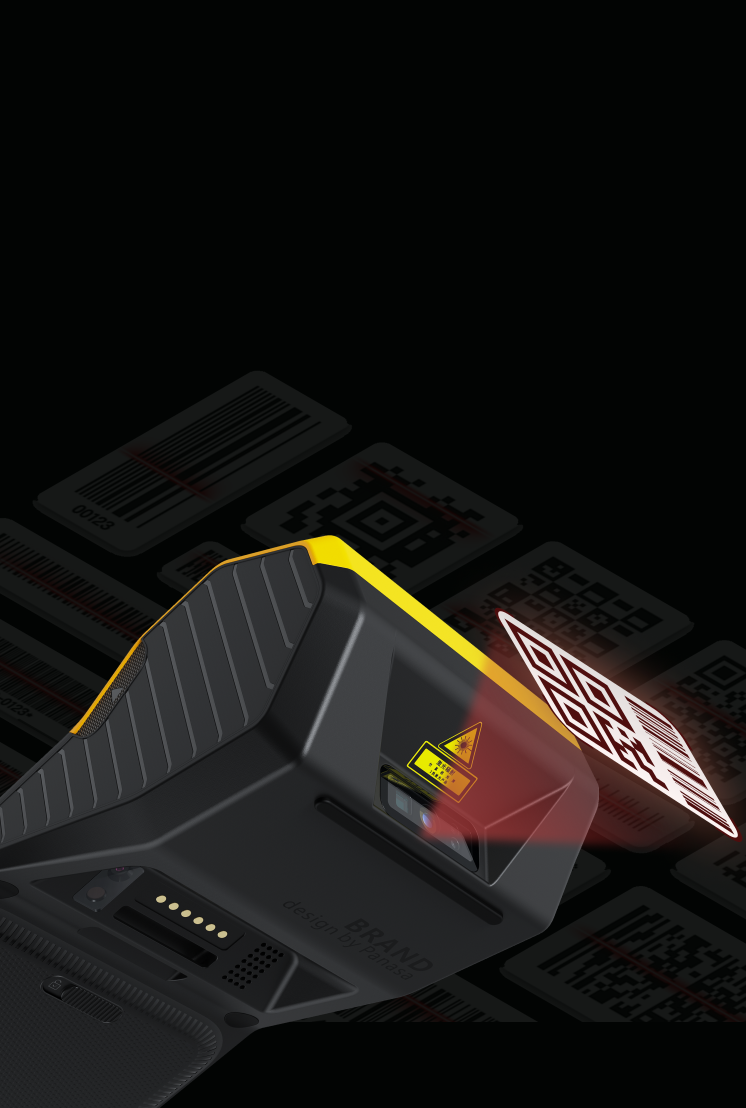

Equipped with the most powerful scan engine in the industry

Industrial-Grade Professional Scanning Engine, Supports One-
Dimensional And Two-Dimensional Scanning, Can Accurately, Quickly
And Easily Read 1D/2D Barcodes On Various Media, And Supports
Damaged, Wrinkled, And Stained Barcode Recognition, Allowing Users
To Work Faster And Easier

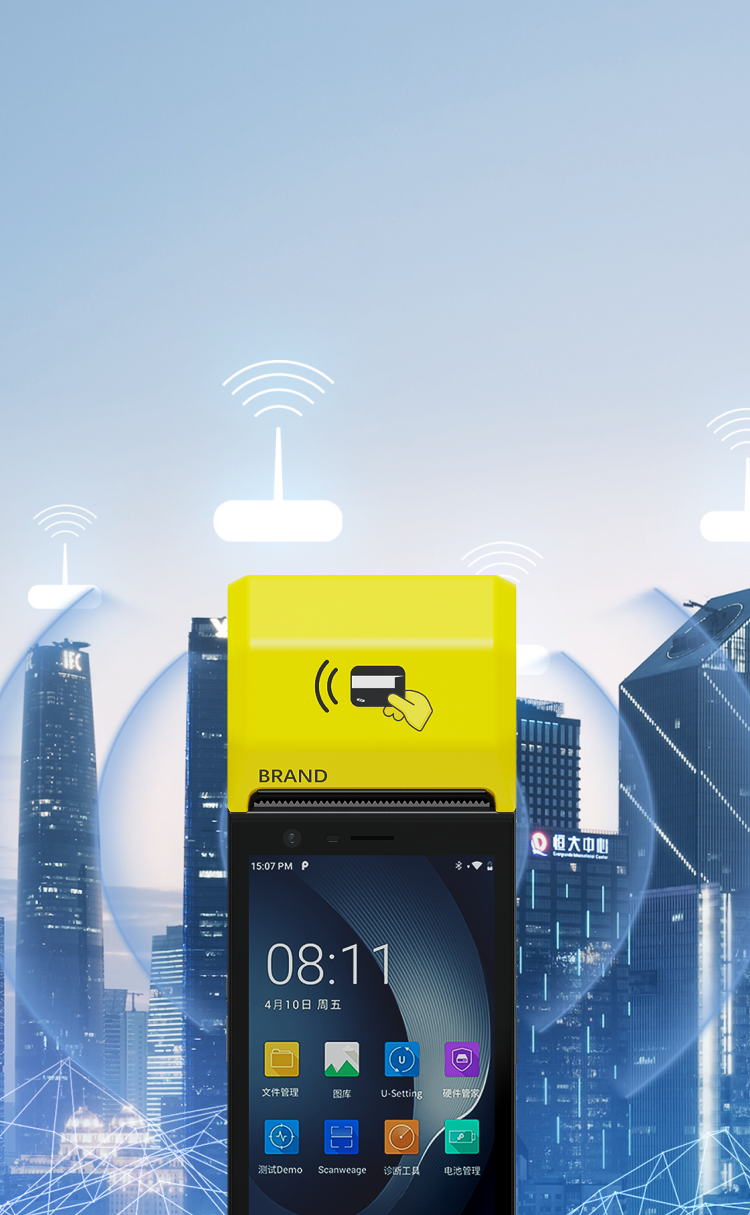

4G Full Netcom + Dual-Band Wi-Fi + Bluetooth, High-Speed
And Stable Wireless Transmission

Industrial-Grade Professional Scanning Engine, Supports One-Dimensional And Two-Dimensional Scanning,
Can Accurately, Quickly And Easily Read 1D/2D Barcodes On Various Media, And Supports Damaged, Wrinkled,
And Stained Barcode Recognition, Allowing Users To Work Faster And Easier

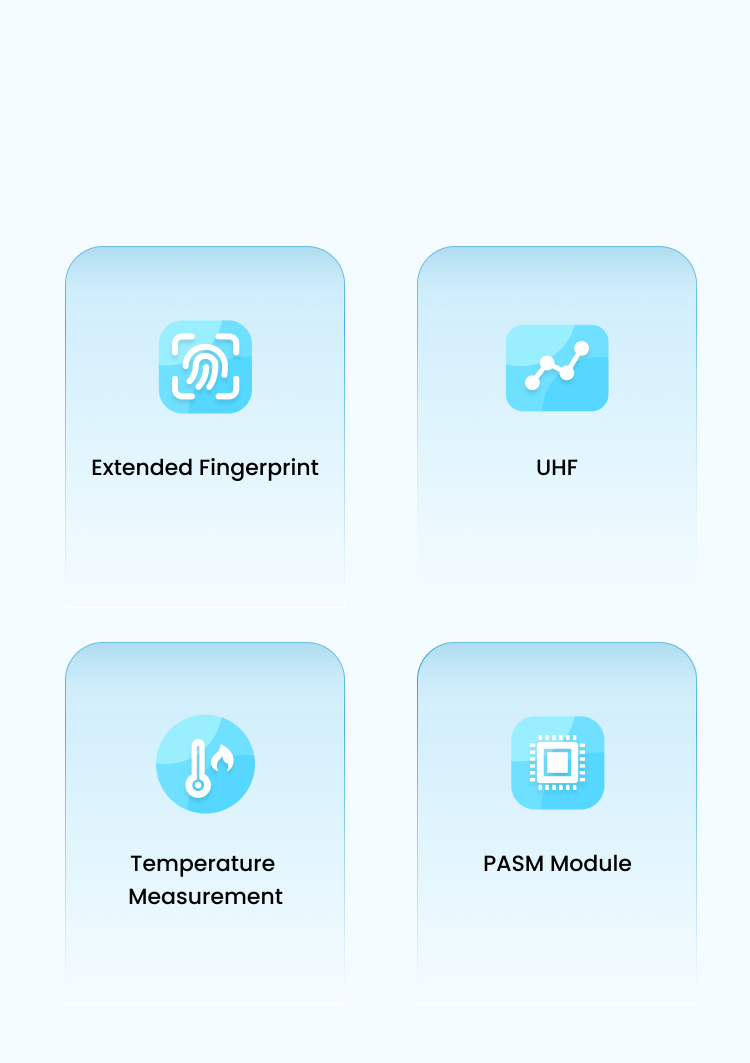

Strong Expansion

Optional Extended Fingerprint, UHF, Temperature Measurement, PASM Modules

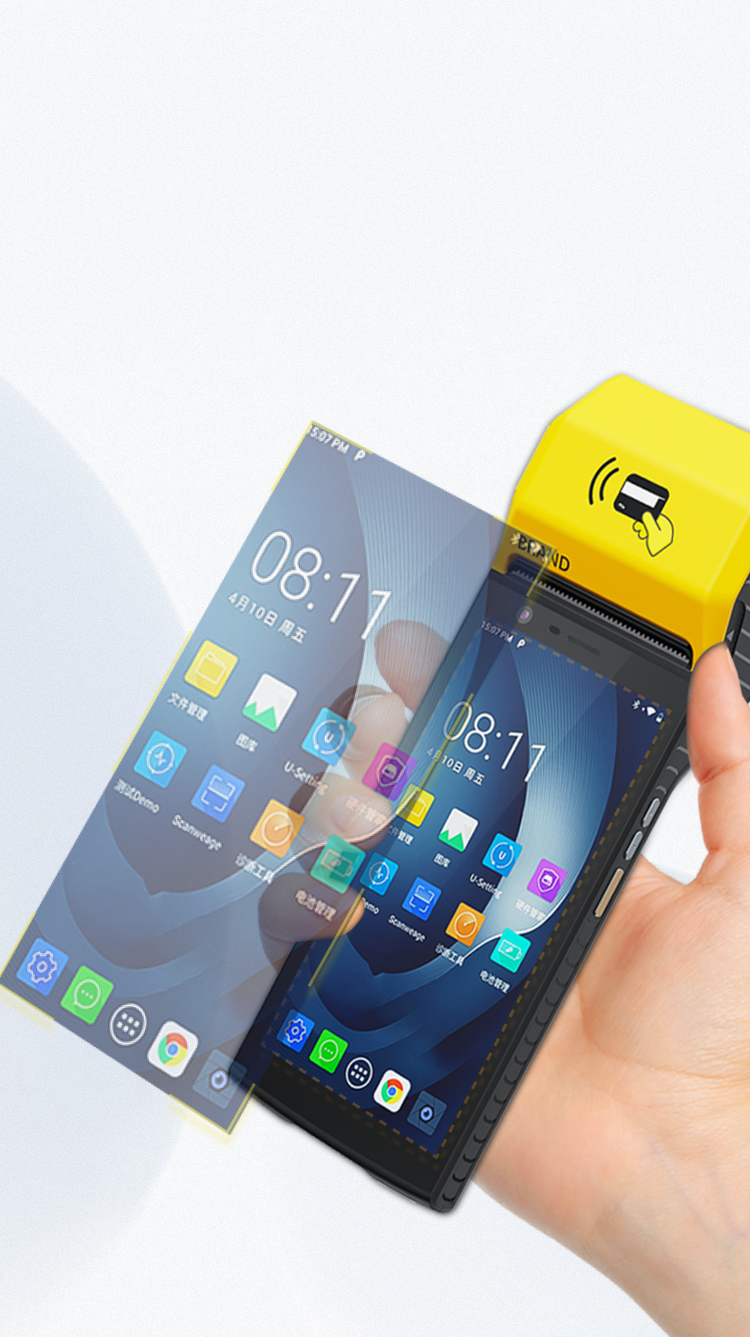

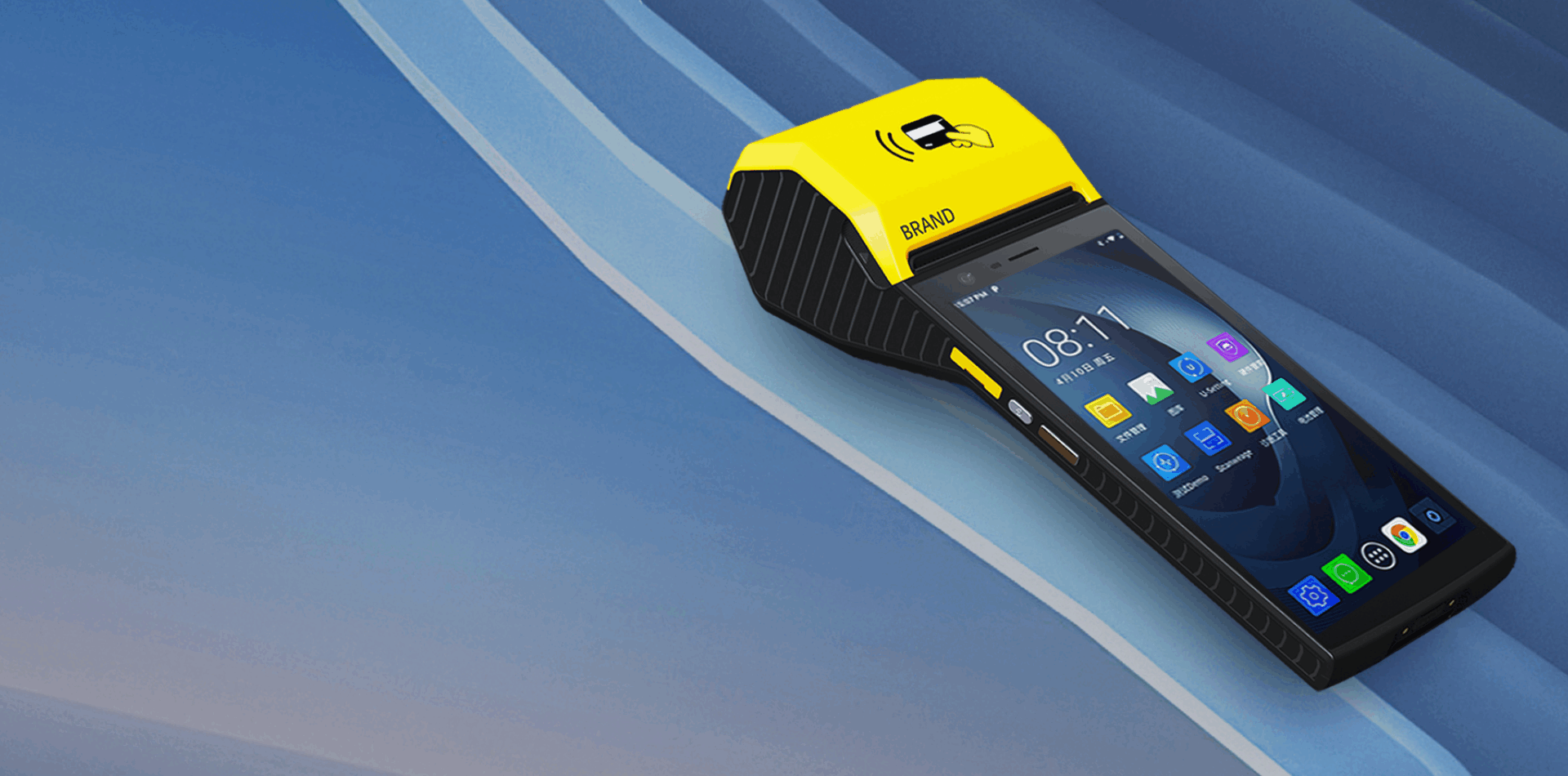

Ultra-Thin Full-Screen Body That
Can Be Held With One Hand

6.0-inch high-definition full-screen design, the thinnest
part of the fuselage is only 17.6mm, and the back is
non-slip back cover design, with a comfortable grip,
light weight and no tired hands

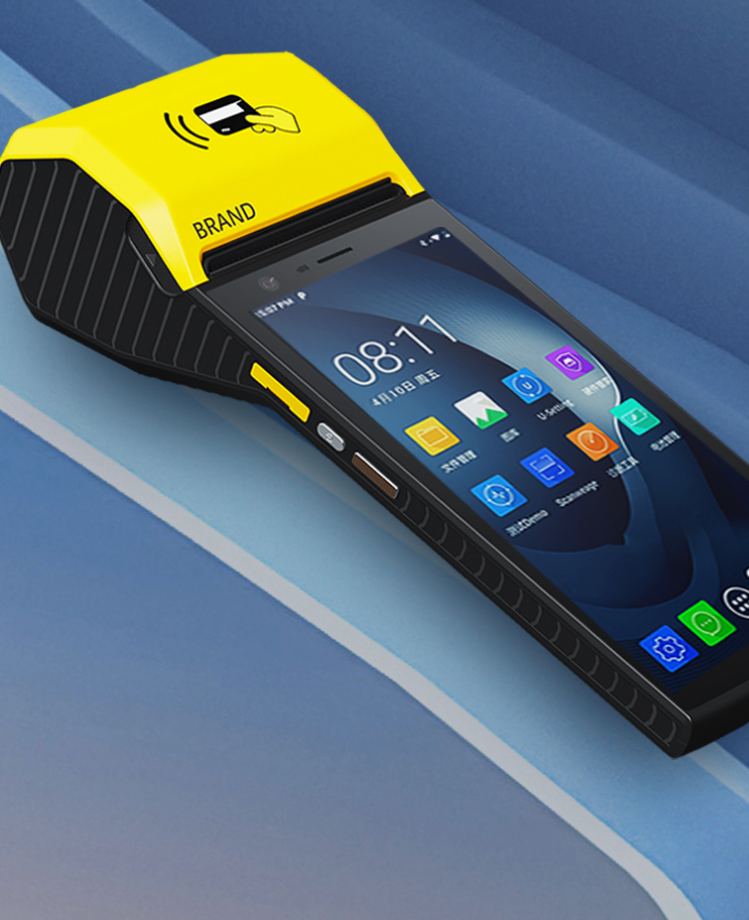

High-performance configuration is more outstanding

Equipped with Qualcomm 8-core high-performance processor, Android12.0 operating
system, synchronous processing of multiple processes, low power consumption, more
efficient work; mass data storage, 3GB RAM+ 32GB ROM

NFC module

Scalable UHF Module RFID (UHF) Batch Reading, Fast And Accurate

It can read RFID tags within a range of 3 meters in batches without touching
and easily scan, and can read more than 50 tags per second, helping
enterprises to leap to a new level of work efficiency.

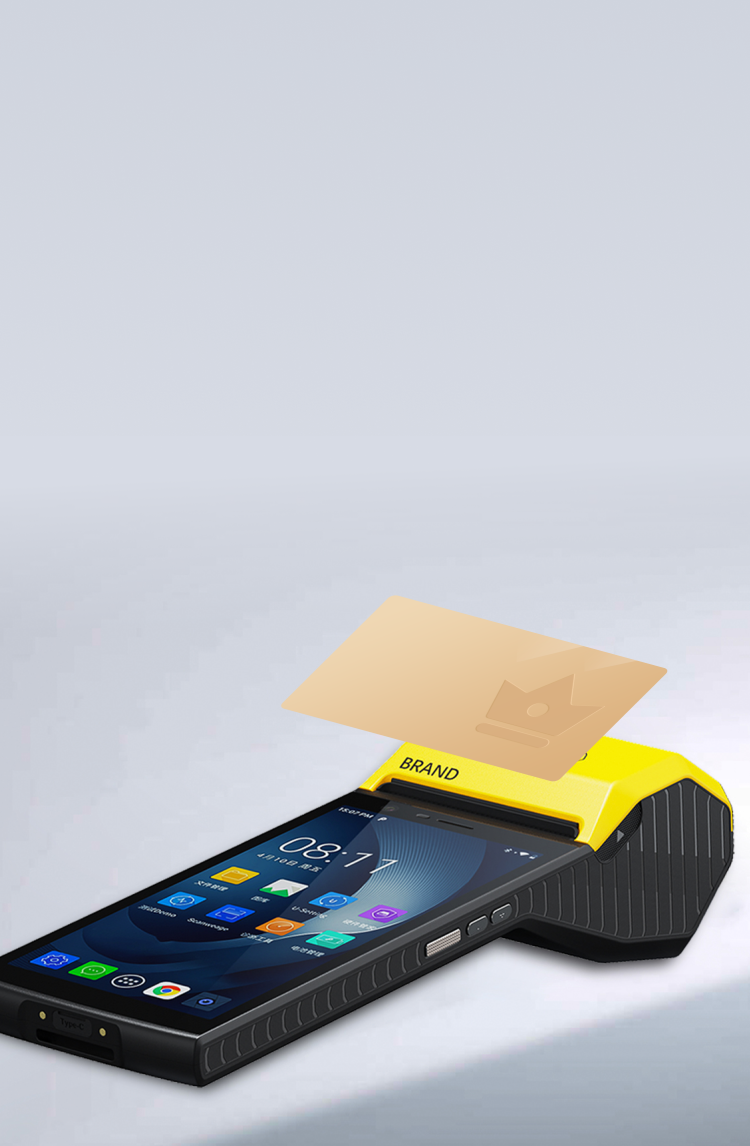

Scalable contact IC card module

Safe, stable and efficient, it can perform well in card swiping scenarios.

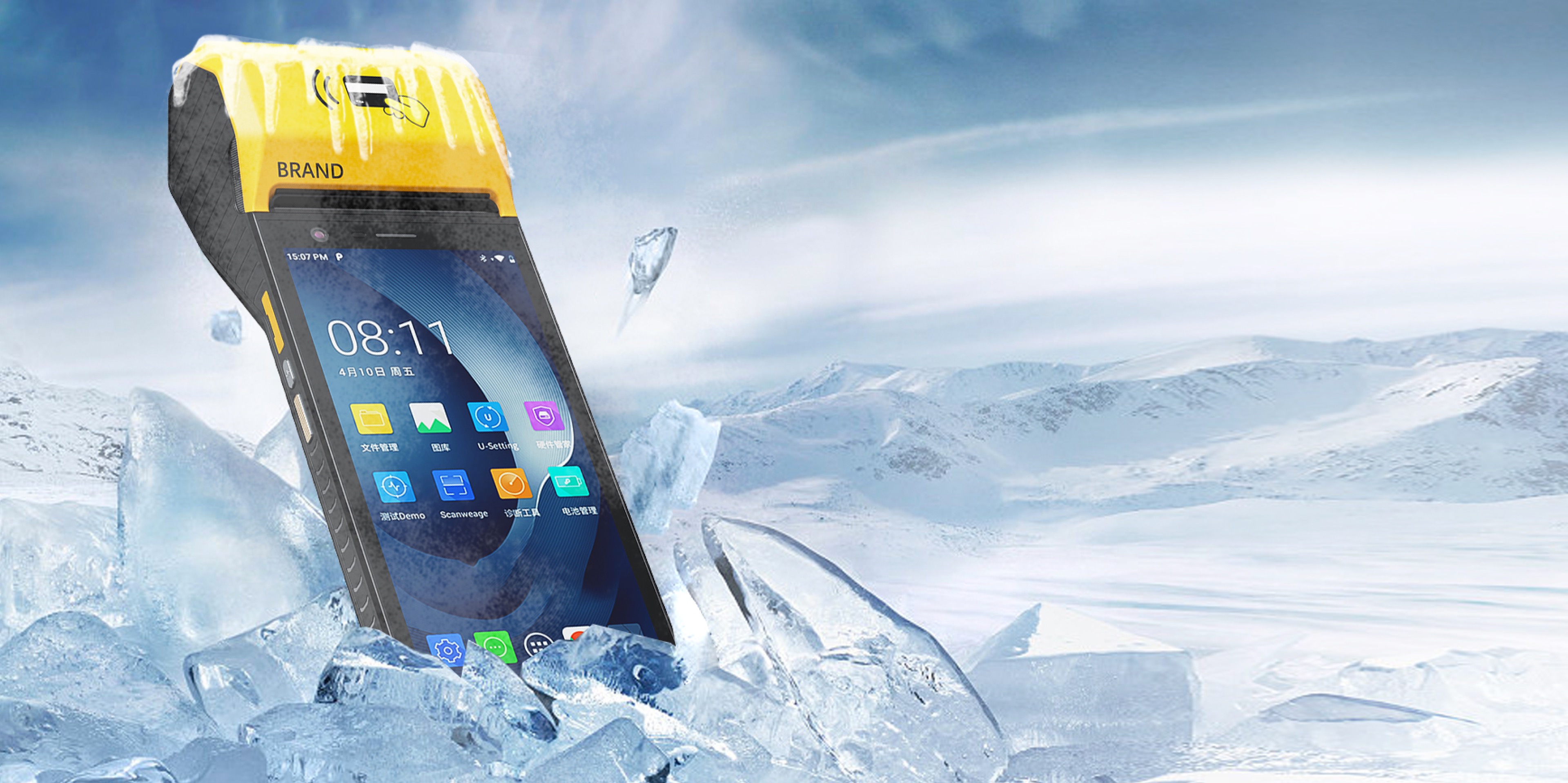

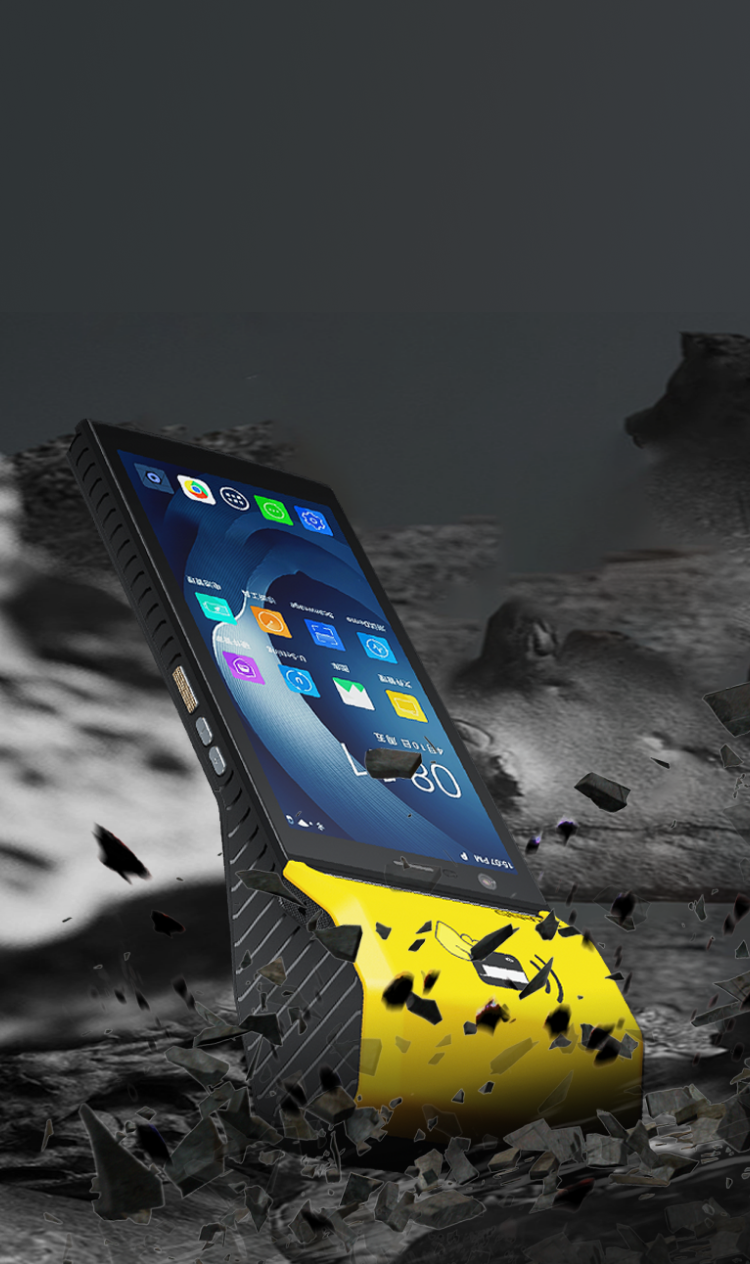

IP65 dustproof and waterproof,
1.5m concrete floor resists drop

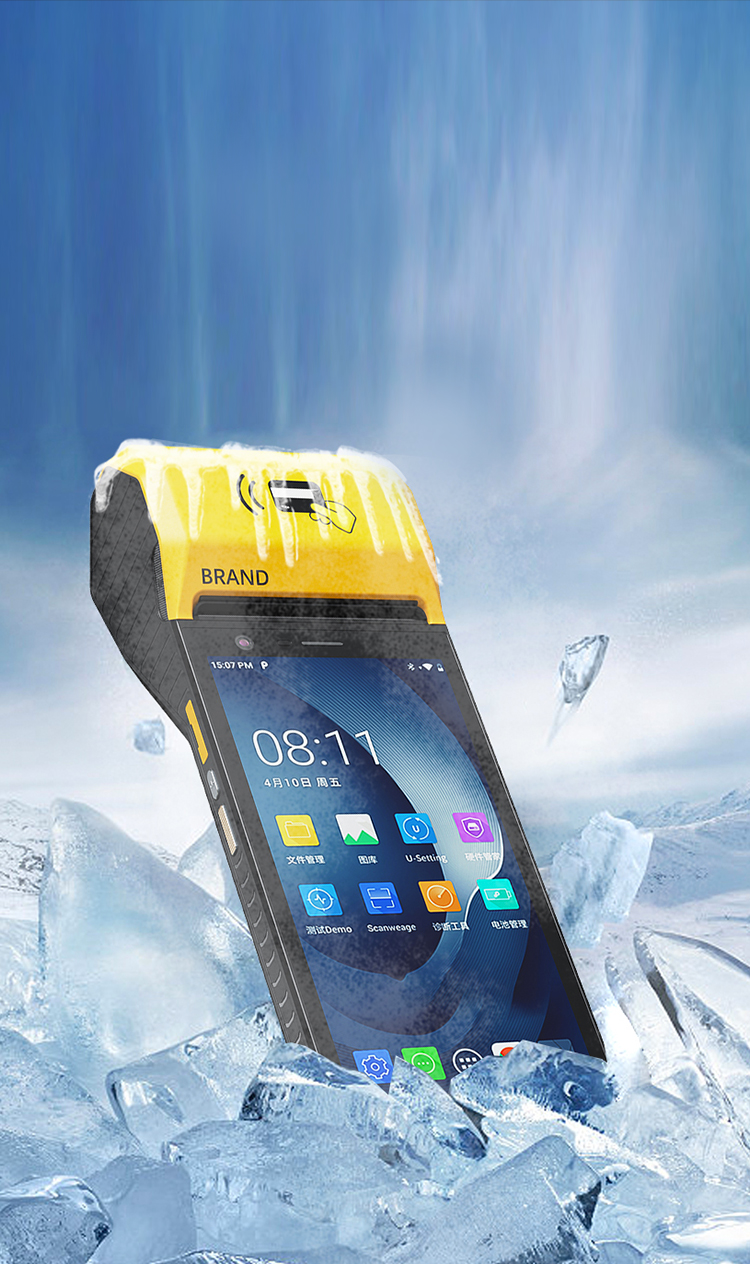

Working temperature -10~60°C Easily adapt to various complex
and harsh application scenarios, safe, reliable and durable

IP65 dustproof and waterproof,
1.5m concrete floor resists drop

Working temperature -10~60°C Easily adapt to various complex
and harsh application scenarios, safe, reliable and durable

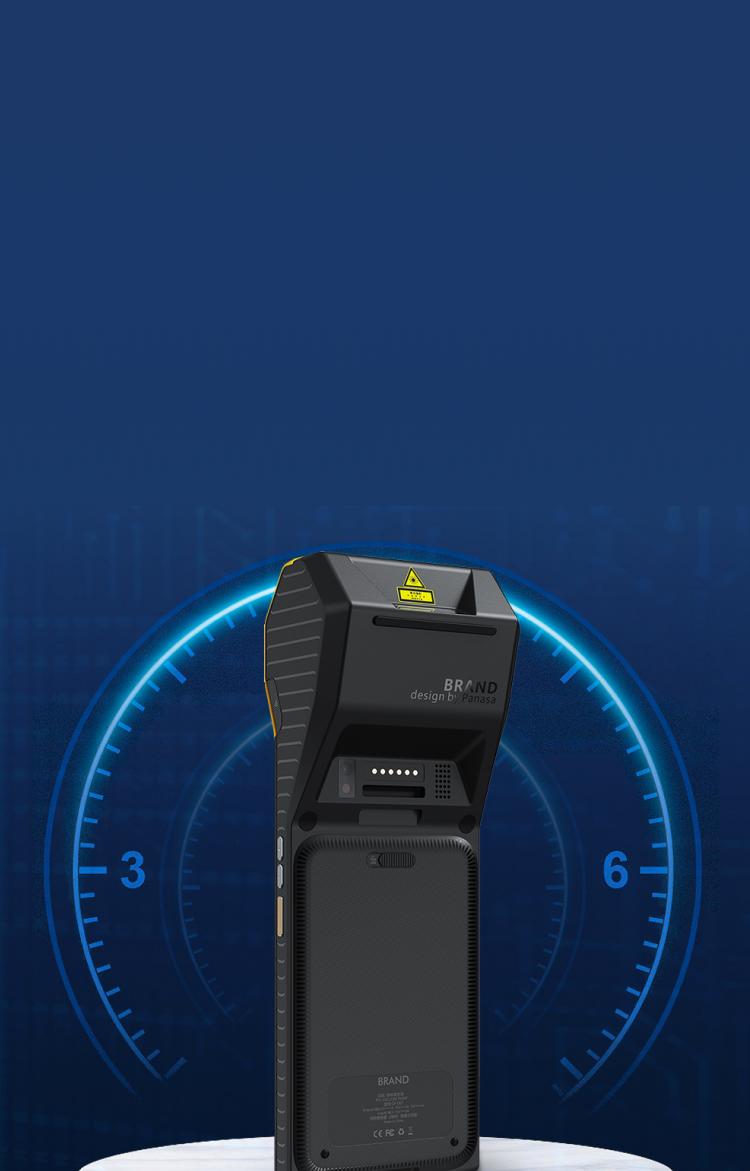

Long battery life, continuous online

Optional 3000mAh removable high-capacity lithium battery
Low-power design, long-lasting battery life can meet the needs of all-day work;

Capacity

3000mAh

Handy Business With Multiple Accessories

  • Accessories
  • Accessories

Accessories-02

Accessory Description Copy Accessory Description Copy Accessory Description

Accessories-01

Accessory Description Copy Accessory Description Copy Accessory Description

PDA-601 Product parameters

System Configuration

Processor

MTK Helio P22 Octa-core 2.0 GHz 64-bit high-performance processor

Operating System

Android 12.0

RAM

3GB+32GB

Expansion Slot

Micro SD card (up to 64G)

Display

6.0 inch IPS(720x1440) HD screen

Camera

Front 5MP rear 13MP auto focus with LED fill light

Touch Screen

Industrial-Grade Full-Screen Capacitive Screen

Physical Buttons

Scan Key / Power Key / Custom Key

Hint

Vibration Prompt/LED Prompt/Audio Prompt

Battery

Built-in 7.4V3000mAh high performance lithium polymer battery

Audio

Built-In Microphone/Speaker

Sensor

Ambient Light sensor, Proximity sensor

Interface

TYPE-C

Structural Parameters

Overall Size (LxWxD)

210*80*42mm

Total Weight

505 G (Including Battery)

Data Communication

Wi-Fi

IEEE 802.11 B/G/N

Bluetooth

Bluetooth 4.0

GPS

High-Performance GPS/AGPS Navigation Chip

All Netcoma

3G: WCDMA:850/900/1900/2100MHz CDMA/EVDO 800MHz GSM: 850/900/1800/1900MHz
4G:LTE-FDD:B1/B3/B7/B8/B28 LTE-TDD:B38/B39/B40/B41

Printer

Printing Method

Built-In Line Thermal Printer

Print Width

58mm

Printing Media

Thermal Paper And Thermal Self-Adhesive

Sensor

Black Mark / Out Of Paper / Overheating And Overvoltage Protection

Printing Type

Text / Image / Barcode / QR Code

Use Environment

Development Tools

Android SDK + JDK + Eclipse

Supported Language

Java

Operating Temperature

- 10° To 50° C

Storage Temperature

- 20° To 70° C

Humidity

0 ~ 95% (No Condensation)
